G3024_エクセルデータ処理実験①

2025年3月23日

15:19

G3024_pc_excel_data_example_report_1



Version:0.9 StartHTML:00000000 EndHTML:00000000 StartFragment:00000000 EndFragment:00000000 G3024_プロジェクト



解説

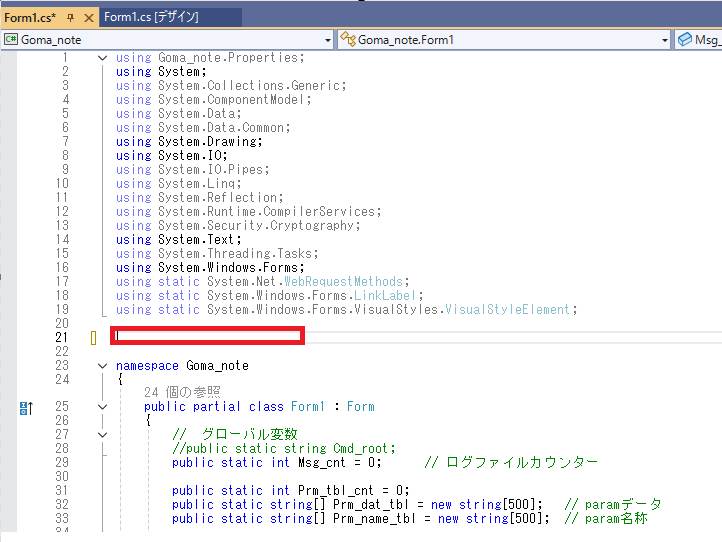

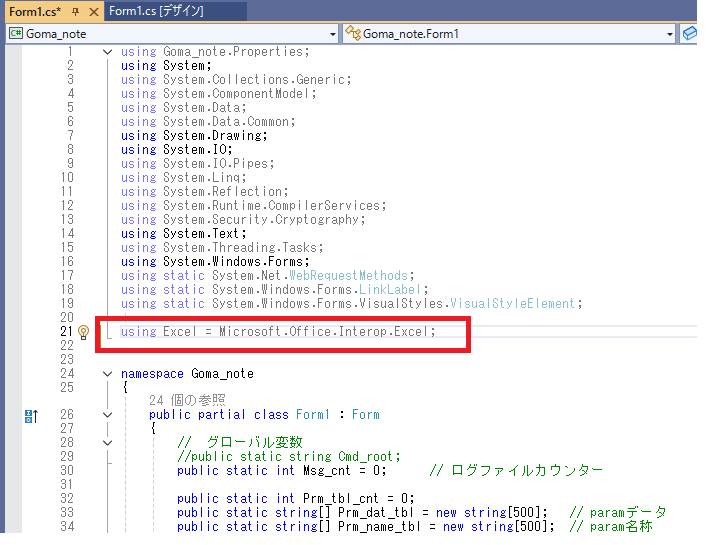

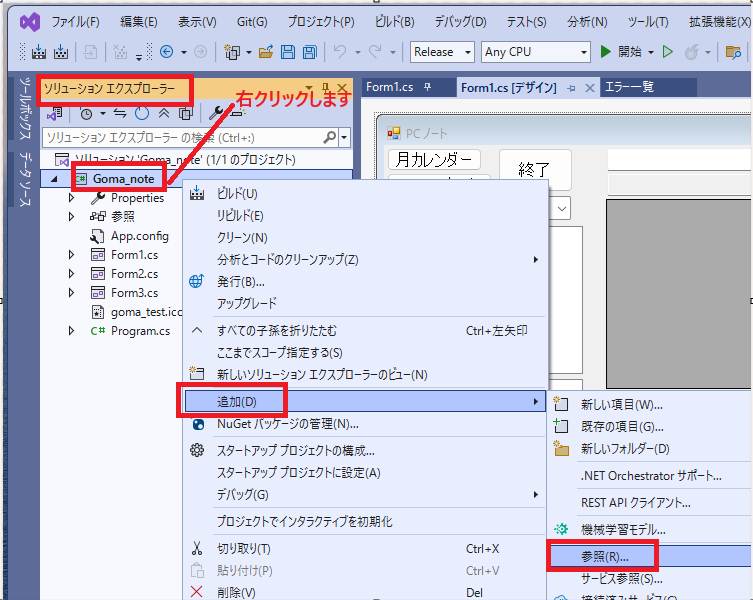

using の定義を追加します





using Excel = Microsoft.Office.Interop.Excel;









Microsoft Visual C# .NET から Microsoft Excel を自動化する方法 - Office | Microsoft Docs

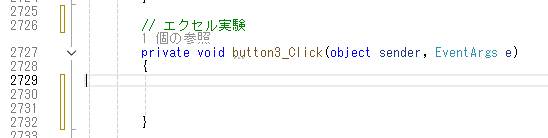

下記をボタンの中にコピペします



Excel.Application oXL;

Excel._Workbook oWB;

Excel._Worksheet oSheet;

Excel.Range oRng;



try

{

//Start Excel and get Application object.

oXL = new Excel.Application();

oXL.Visible = true;



//Get a new workbook.

oWB = (Excel._Workbook)(oXL.Workbooks.Add( Missing.Value ));

oSheet = (Excel._Worksheet)oWB.ActiveSheet;



//Add table headers going cell by cell.

oSheet.Cells[1, 1] = "First Name";

oSheet.Cells[1, 2] = "Last Name";

oSheet.Cells[1, 3] = "Full Name";

oSheet.Cells[1, 4] = "Salary";



//Format A1:D1 as bold, vertical alignment = center.

oSheet.get_Range("A1", "D1").Font.Bold = true;

oSheet.get_Range("A1", "D1").VerticalAlignment =

Excel.XlVAlign.xlVAlignCenter;



// Create an array to multiple values at once.

string[,] saNames = new string[5,2];



saNames[ 0, 0] = "John";

saNames[ 0, 1] = "Smith";

saNames[ 1, 0] = "Tom";

saNames[ 1, 1] = "Brown";

saNames[ 2, 0] = "Sue";

saNames[ 2, 1] = "Thomas";

saNames[ 3, 0] = "Jane";

saNames[ 3, 1] = "Jones";

saNames[ 4, 0] = "Adam";

saNames[ 4, 1] = "Johnson";



//Fill A2:B6 with an array of values (First and Last Names).

     oSheet.get_Range("A2", "B6").Value2 = saNames;



//Fill C2:C6 with a relative formula (=A2 & " " & B2).

oRng = oSheet.get_Range("C2", "C6");

oRng.Formula = "=A2 & \" \" & B2";



//Fill D2:D6 with a formula(=RAND()*100000) and apply format.

oRng = oSheet.get_Range("D2", "D6");

oRng.Formula = "=RAND()*100000";

oRng.NumberFormat = "$0.00";



//AutoFit columns A:D.

oRng = oSheet.get_Range("A1", "D1");

oRng.EntireColumn.AutoFit();



//Manipulate a variable number of columns for Quarterly Sales Data.

DisplayQuarterlySales(oSheet);



//Make sure Excel is visible and give the user control

//of Microsoft Excel's lifetime.

oXL.Visible = true;

oXL.UserControl = true;

}

catch( Exception theException )

{

String errorMessage;

errorMessage = "Error: ";

errorMessage = String.Concat( errorMessage, theException.Message );

errorMessage = String.Concat( errorMessage, " Line: " );

errorMessage = String.Concat( errorMessage, theException.Source );



MessageBox.Show( errorMessage, "Error" );

}



下記は、ボタンループの下にコピペします



private void DisplayQuarterlySales(Excel._Worksheet oWS)

{

Excel._Workbook oWB;

Excel.Series oSeries;

Excel.Range oResizeRange;

Excel._Chart oChart;

String sMsg;

int iNumQtrs;



//Determine how many quarters to display data for.

for( iNumQtrs = 4; iNumQtrs >= 2; iNumQtrs--)

{

sMsg = "Enter sales data for ";

sMsg = String.Concat( sMsg, iNumQtrs );

sMsg = String.Concat( sMsg, " quarter(s)?");



DialogResult iRet = MessageBox.Show( sMsg, "Quarterly Sales?",

MessageBoxButtons.YesNo );

if (iRet == DialogResult.Yes)

break;

}



sMsg = "Displaying data for ";

sMsg = String.Concat( sMsg, iNumQtrs );

sMsg = String.Concat( sMsg, " quarter(s)." );



MessageBox.Show( sMsg, "Quarterly Sales" );



//Starting at E1, fill headers for the number of columns selected.

oResizeRange = oWS.get_Range("E1", "E1").get_Resize( Missing.Value, iNumQtrs);

oResizeRange.Formula = "=\"Q\" & COLUMN()-4 & CHAR(10) & \"Sales\"";



//Change the Orientation and WrapText properties for the headers.

oResizeRange.Orientation = 38;

oResizeRange.WrapText = true;



//Fill the interior color of the headers.

oResizeRange.Interior.ColorIndex = 36;



//Fill the columns with a formula and apply a number format.

oResizeRange = oWS.get_Range("E2", "E6").get_Resize( Missing.Value, iNumQtrs);

oResizeRange.Formula = "=RAND()*100";

oResizeRange.NumberFormat = "$0.00";



//Apply borders to the Sales data and headers.

oResizeRange = oWS.get_Range("E1", "E6").get_Resize( Missing.Value, iNumQtrs);

oResizeRange.Borders.Weight = Excel.XlBorderWeight.xlThin;



//Add a Totals formula for the sales data and apply a border.

oResizeRange = oWS.get_Range("E8", "E8").get_Resize( Missing.Value, iNumQtrs);

oResizeRange.Formula = "=SUM(E2:E6)";

oResizeRange.Borders.get_Item( Excel.XlBordersIndex.xlEdgeBottom ).LineStyle

= Excel.XlLineStyle.xlDouble;

oResizeRange.Borders.get_Item( Excel.XlBordersIndex.xlEdgeBottom ).Weight

= Excel.XlBorderWeight.xlThick;



//Add a Chart for the selected data.

oWB = (Excel._Workbook)oWS.Parent;

oChart = (Excel._Chart)oWB.Charts.Add( Missing.Value, Missing.Value,

Missing.Value, Missing.Value );



//Use the ChartWizard to create a new chart from the selected data.

oResizeRange = oWS.get_Range("E2:E6", Missing.Value ).get_Resize(

Missing.Value, iNumQtrs);

oChart.ChartWizard( oResizeRange, Excel.XlChartType.xl3DColumn, Missing.Value,

Excel.XlRowCol.xlColumns, Missing.Value, Missing.Value, Missing.Value,

Missing.Value, Missing.Value, Missing.Value, Missing.Value );

oSeries = (Excel.Series)oChart.SeriesCollection(1);

oSeries.XValues = oWS.get_Range("A2", "A6");

for( int iRet = 1; iRet <= iNumQtrs; iRet++)

{

oSeries = (Excel.Series)oChart.SeriesCollection(iRet);

String seriesName;

seriesName = "=\"Q";

seriesName = String.Concat( seriesName, iRet );

seriesName = String.Concat( seriesName, "\"" );

oSeries.Name = seriesName;

}



oChart.Location( Excel.XlChartLocation.xlLocationAsObject, oWS.Name );



//Move the chart so as not to cover your data.

oResizeRange = (Excel.Range)oWS.Rows.get_Item(10, Missing.Value );

oWS.Shapes.Item("Chart 1").Top = (float)(double)oResizeRange.Top;

oResizeRange = (Excel.Range)oWS.Columns.get_Item(2, Missing.Value );

oWS.Shapes.Item("Chart 1").Left = (float)(double)oResizeRange.Left;

}

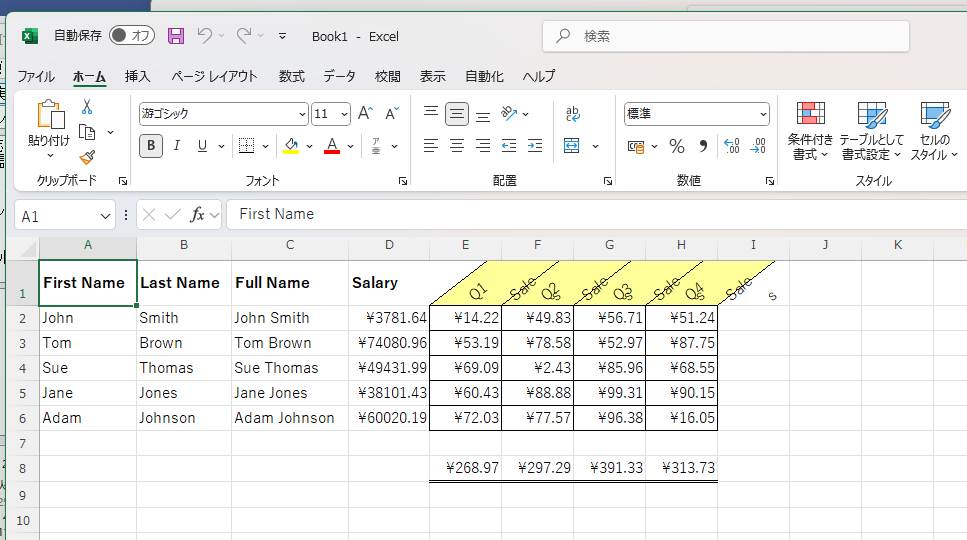

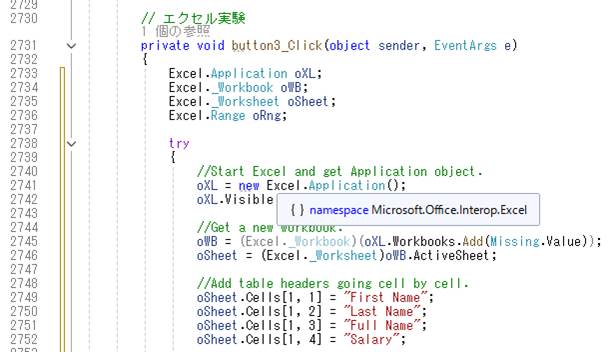

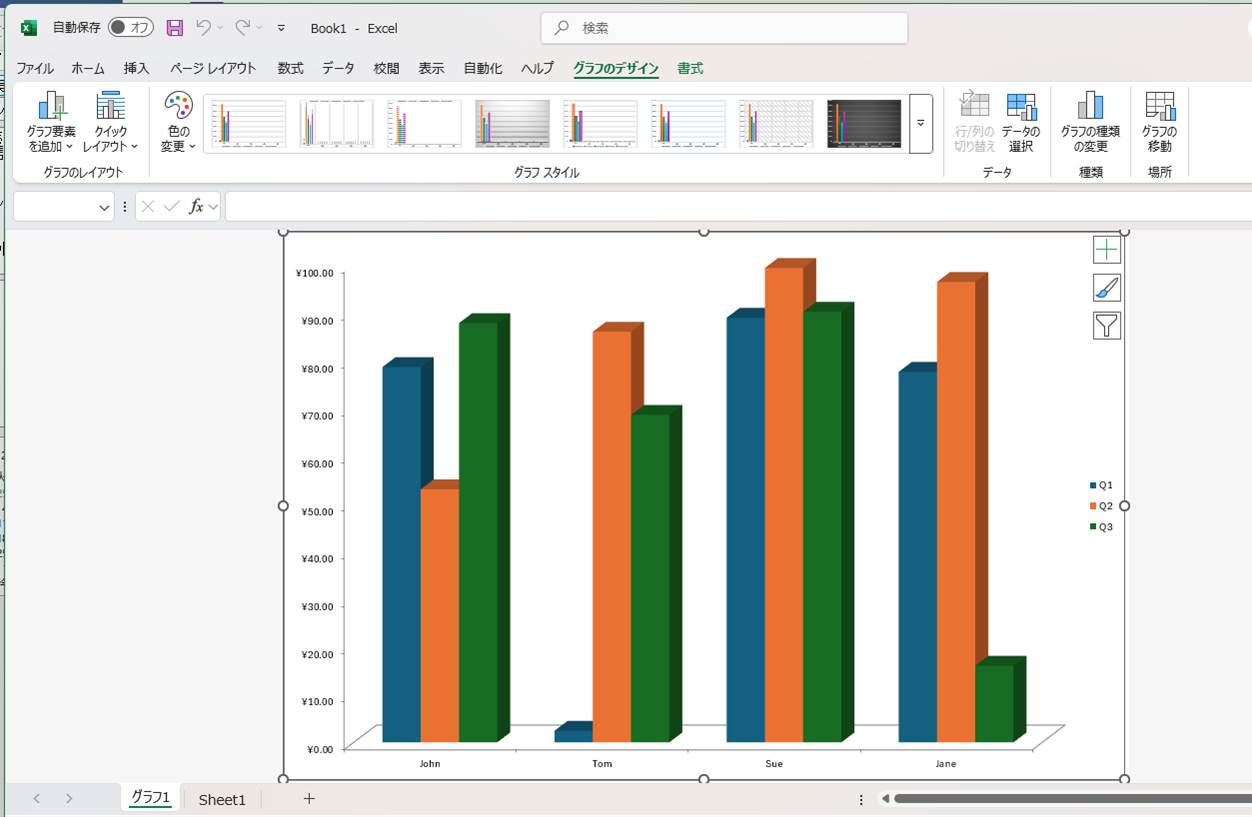

コピペした直後の画面

















原稿ファイルを開いてデータを代入することが基本

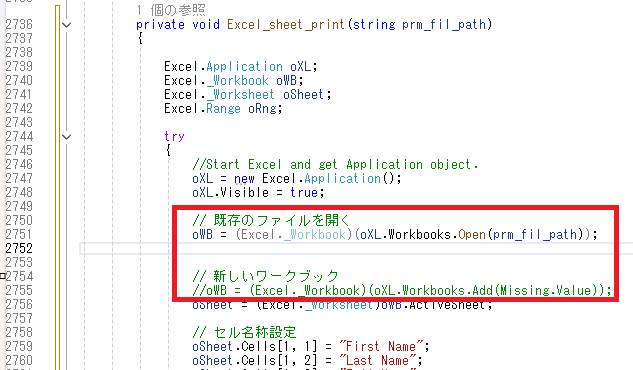

// 既存のファイルを開く

oWB = (Excel._Workbook)(oXL.Workbooks.Open(prm_fil_path));

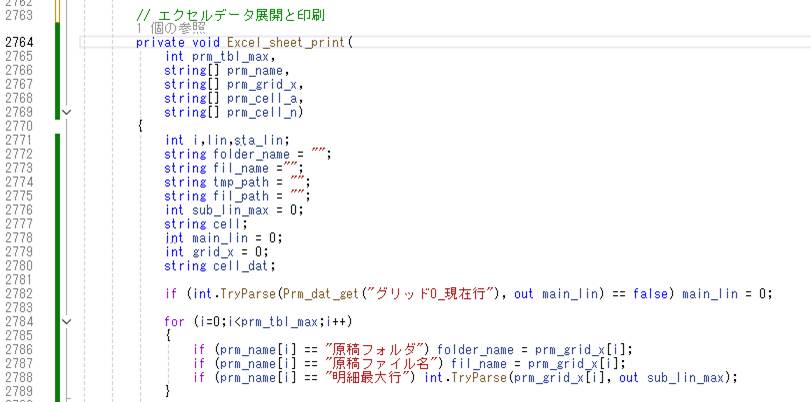

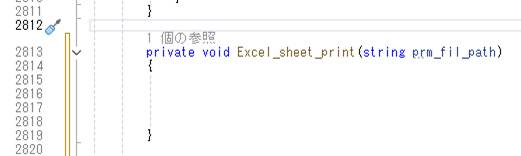

関数を新設します

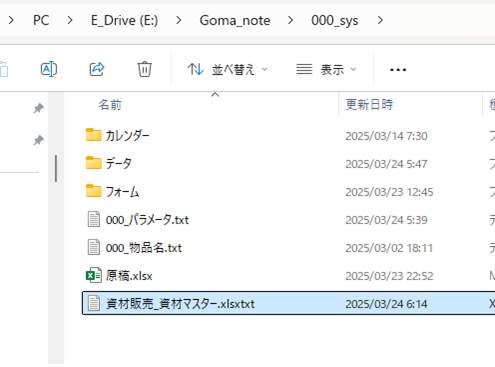

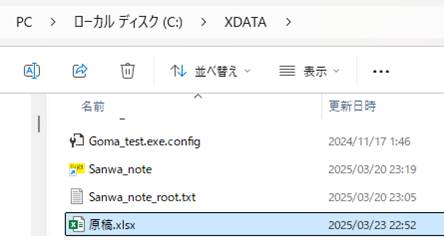

原稿.xlsx を作成します

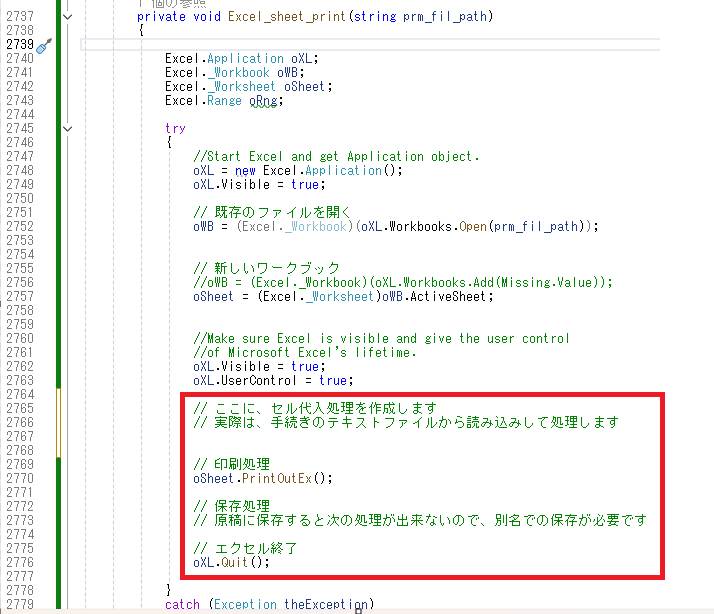

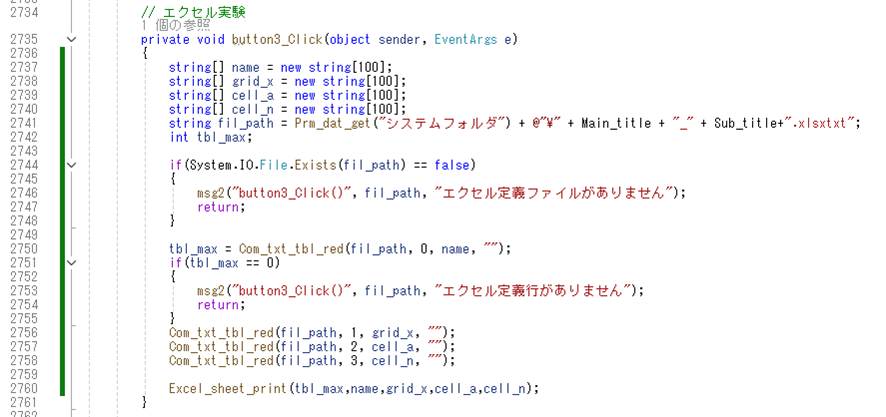

サンプルコードを削除して、印刷実行を調査します





伝票処理を構築するのには時間を要するので

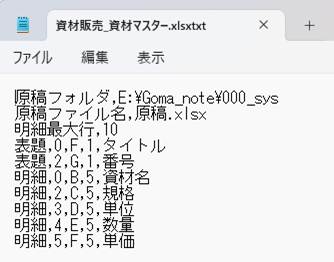

取り決め事項









エクセル代入手続き

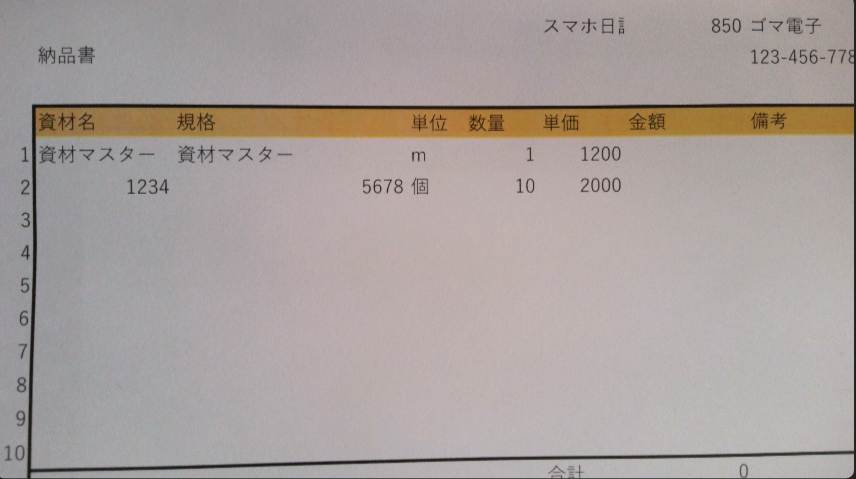

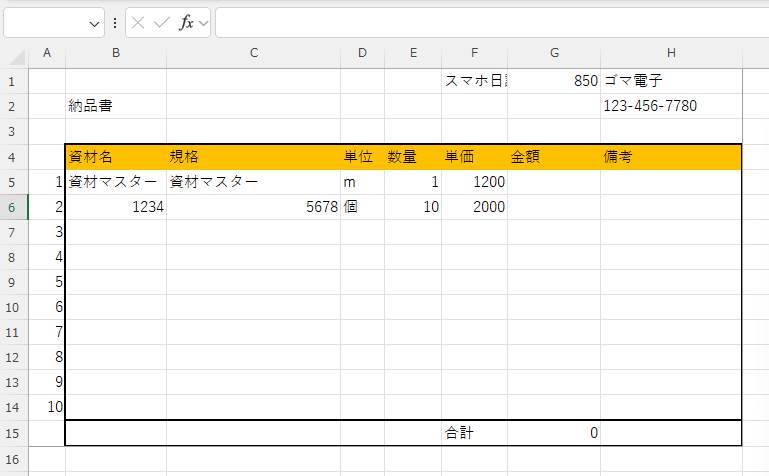

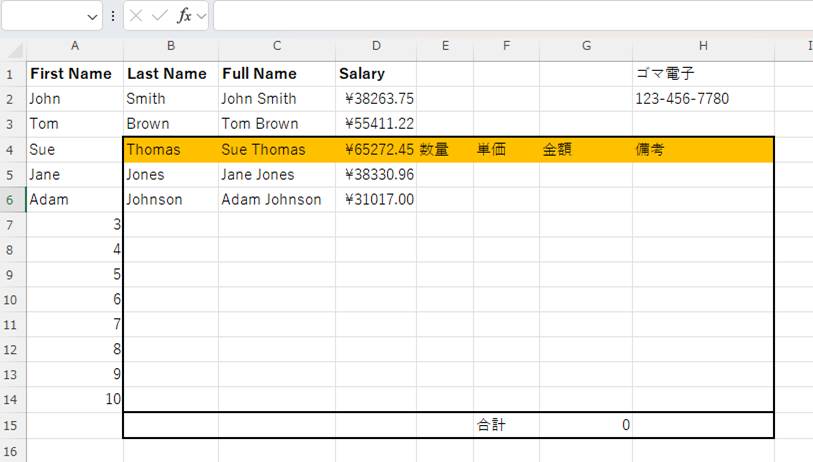

実行結果です











コードの説明

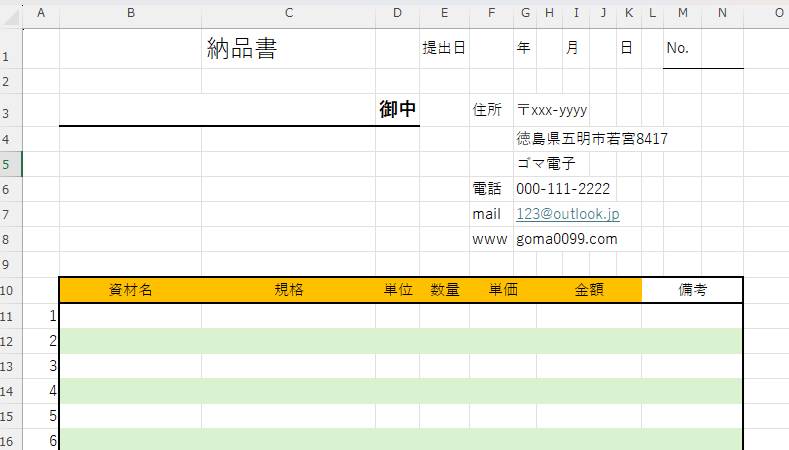

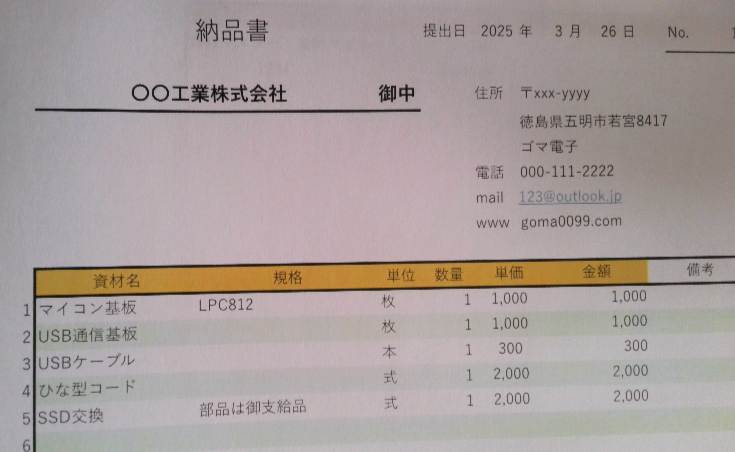

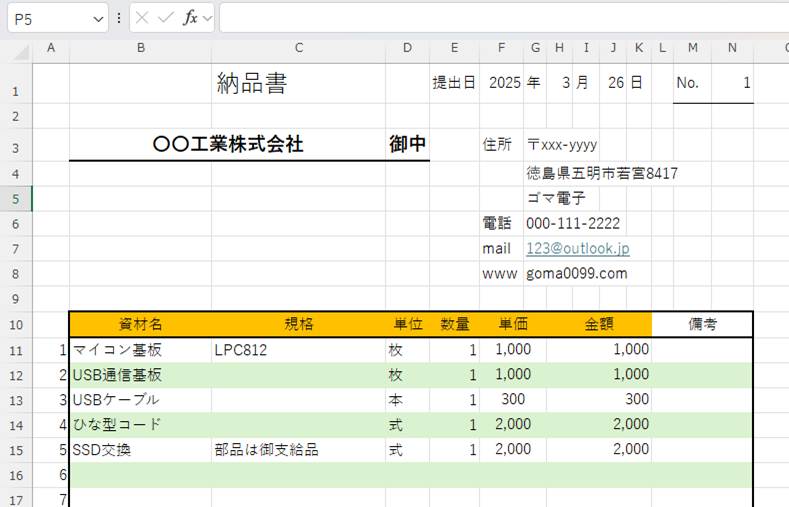

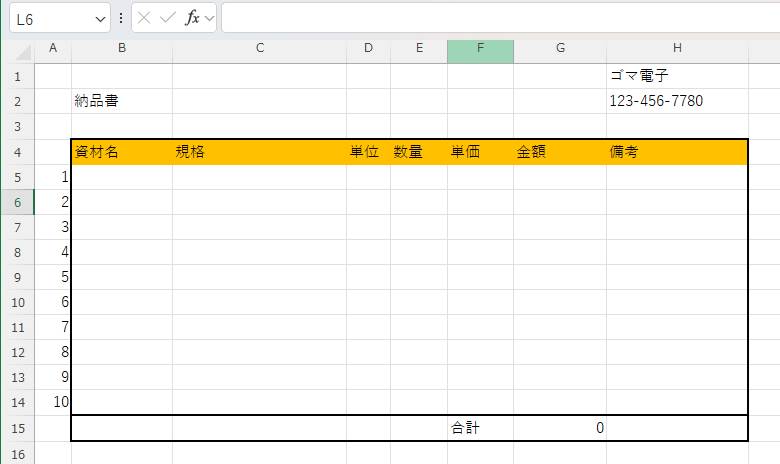

納品書の書式作成

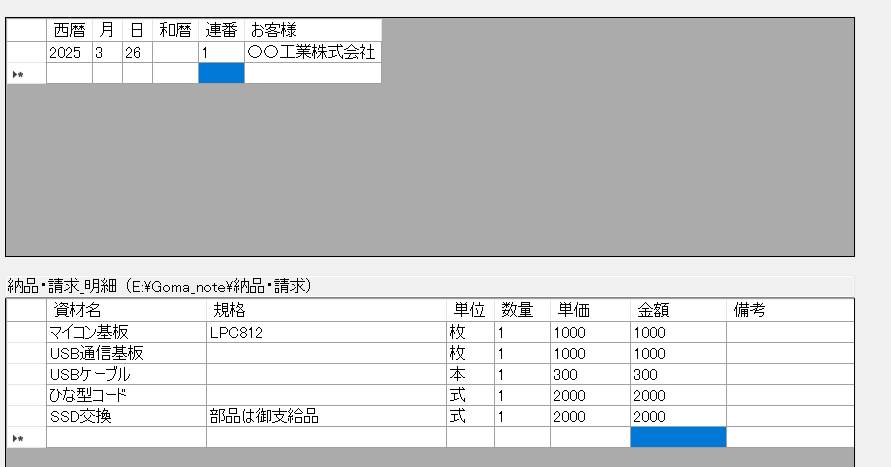

納品・請求のそれらしいデータを準備します

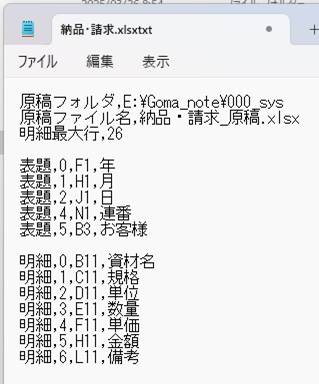

セル代入定義の作り直し









現在確認されている不具合





今後の課題
