<p style='margin:0mm'><span lang=EN-US style='font-size:20.0pt;font-family:
游ゴシック'>G2502_LPC11U35_CPU</span><span style='font-size:20.0pt;font-family:游ゴシック'>基板</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:10.0pt;font-family:
游ゴシック;color:#767676'>2024</span><span style='font-size:10.0pt;font-family:游ゴシック;
color:#767676'>年<span lang=EN-US>12</span>月<span lang=EN-US>17</span>日</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:10.0pt;font-family:
游ゴシック;color:#767676'>5:15</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>G2502_lpc11u35_cpu_bord_report</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>改訂履歴</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>リセットスイッチを左に変更</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>マイコンの電源に<span lang=EN-US> 0.1uF</span>のセラミックコンデンサを接続し忘れています</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

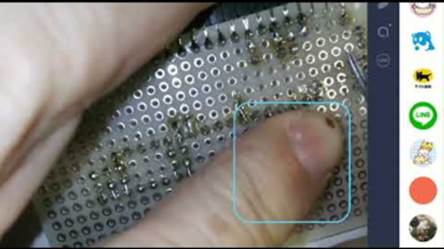

<p style='margin:0mm'><span lang=EN-US><a href="https://youtu.be/lqGi1ruZLm8"><span
style='font-size:11.0pt;font-family:游ゴシック'>G2502 LPC11U35 CPU</span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>基板</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=355 height=199 id="図 1"
src="G2502_lpc11u35_cpu_bord_report.files/image001.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/default.aspx"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>トップページ</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<div>

<table class=MsoNormalTable border=1 cellspacing=0 cellpadding=0 title=""
 summary="" style='border-collapse:collapse;border:none'>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>110657</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border:solid #A3A3A3 1.0pt;
  border-left:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>

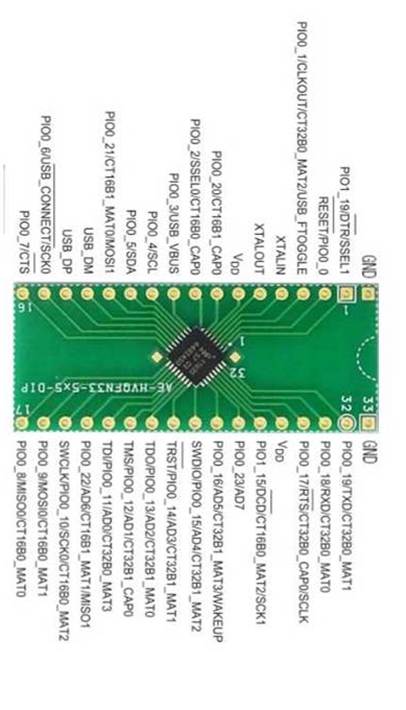

  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

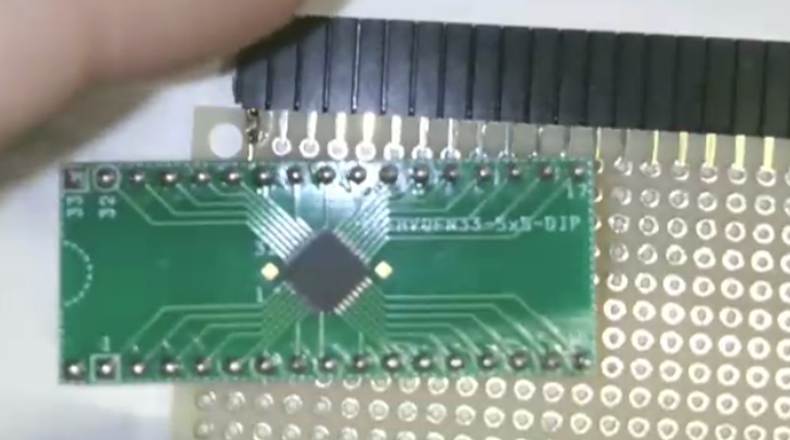

  游ゴシック'>LPC11U35 DIP</span><span style='font-size:11.0pt;font-family:游ゴシック'>化モジュール</span></p>
  </td>
  <td width=74 valign=top style='width:55.65pt;border:solid #A3A3A3 1.0pt;
  border-left:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>セット</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border:solid #A3A3A3 1.0pt;
  border-left:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>112978</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>両面スルーホールユニバーサル基板<span
  lang=EN-US> 3*7</span></span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>枚</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>105779</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>分割ロングピンソケット<span
  lang=EN-US> 1</span>×<span lang=EN-US>42 (42P)</span></span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>101591</span></p>
  </td>
  <td width=297 valign=top style='width:222.9pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>丸ピン<span
  lang=EN-US>IC</span>用ソケット<span lang=EN-US> (</span>シングル<span lang=EN-US>40P)
  1</span>×<span lang=EN-US>40</span></span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>106631</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>細ピンヘッダー<span
  lang=EN-US> 1</span>×<span lang=EN-US>40 (</span>黒<span lang=EN-US>)</span></span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>108669</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>クリスタル<span

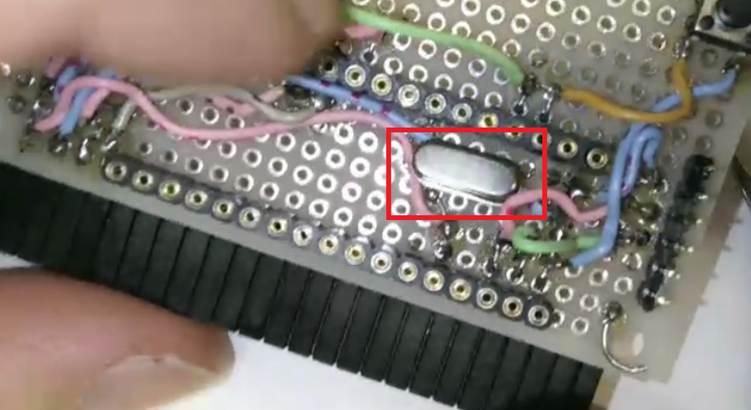

  lang=EN-US>(</span>水晶発振子<span lang=EN-US>) 12MHz</span></span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>103647</span></p>
  </td>
  <td width=295 valign=top style='width:221.55pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>タクトスイッチ</span></p>
  </td>
  <td width=72 valign=top style='width:54.3pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
  <td width=48 valign=top style='width:36.0pt;border-top:none;border-left:none;
  border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
 </tr>
</table>

</div>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g110657/"><span style='font-size:
11.0pt;font-family:游ゴシック'>LPC11U35 DIP</span><span lang=EN-US style='font-size:
11.0pt;font-family:游ゴシック'><span lang=EN-US>化モジュール: </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>半導体</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g112978/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>両面スルーホールユニバーサル基板
3*7: </span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>基板・ブレッドボード・ラグ板</span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US> </span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g105779/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>分割ロングピンソケット 1</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>×42
(42P): </span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>ケーブル・コネクター</span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US> </span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g101591/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>丸ピンIC</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>用ソケット (</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>シングル40P)
1</span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>×40: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>ケーブル・コネクター</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g106631/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>細ピンヘッダー 1</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>×40 (</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>黒): </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>ケーブル・コネクター</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g108669/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>クリスタル(</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>水晶発振子)
12MHz: </span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>受動部品</span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US> </span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g103647/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>タクトスイッチ(</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>黒色): </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>制御部品・駆動部品</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=325 height=568 id="図 2"
src="G2502_lpc11u35_cpu_bord_report.files/image002.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

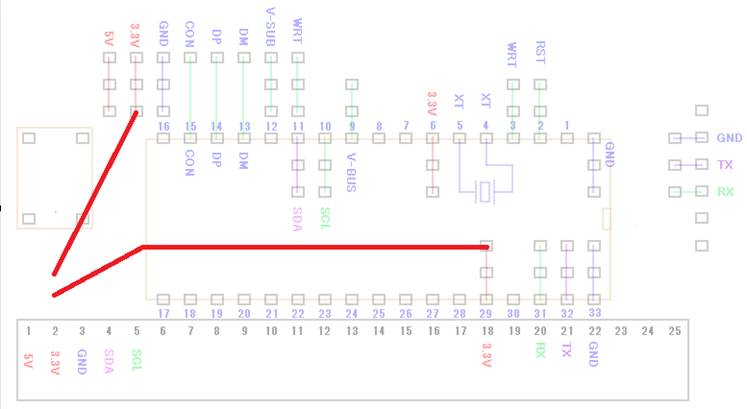

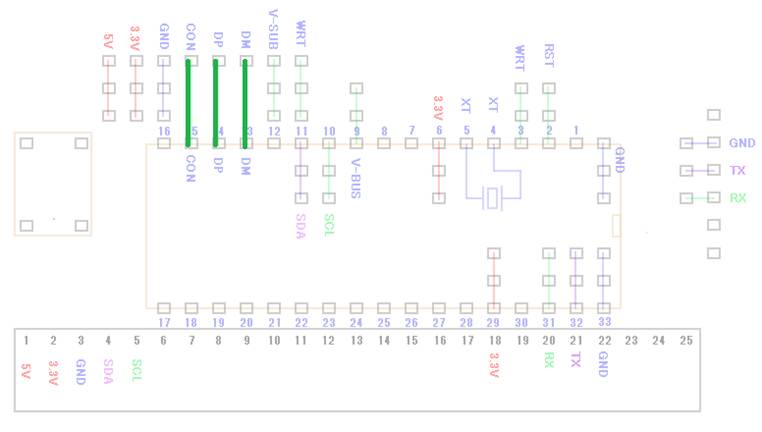

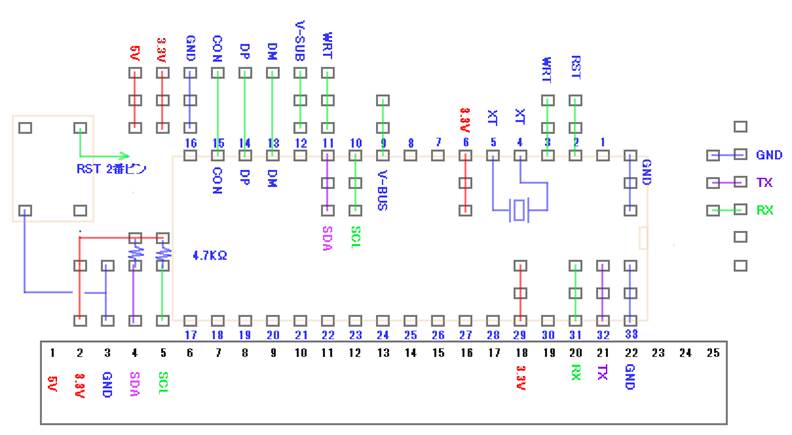

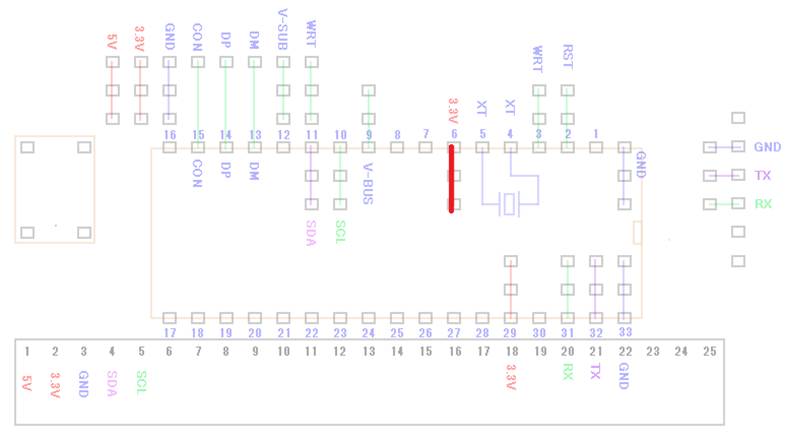

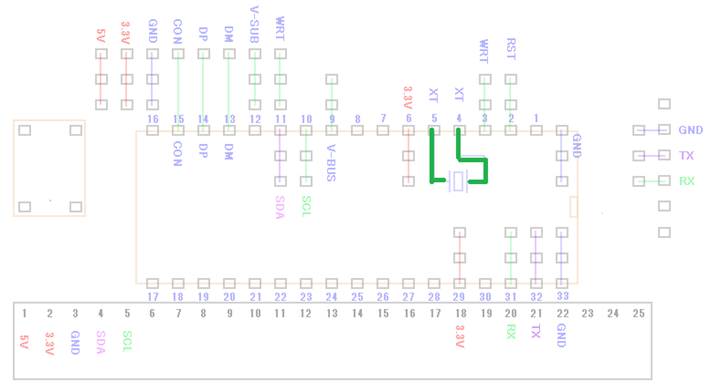

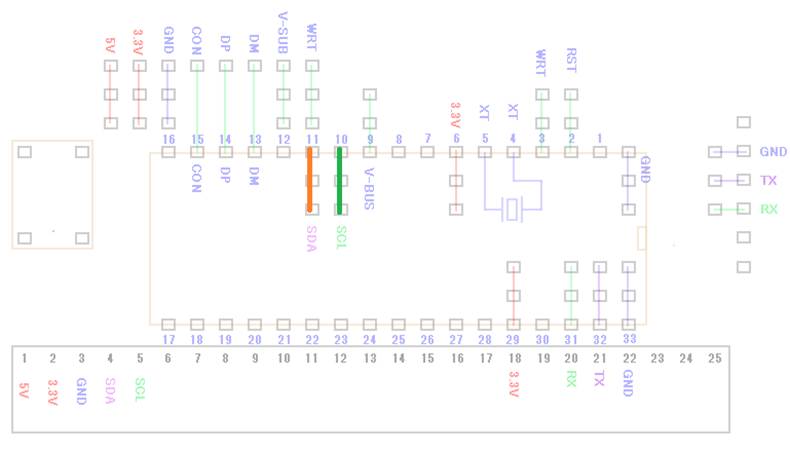

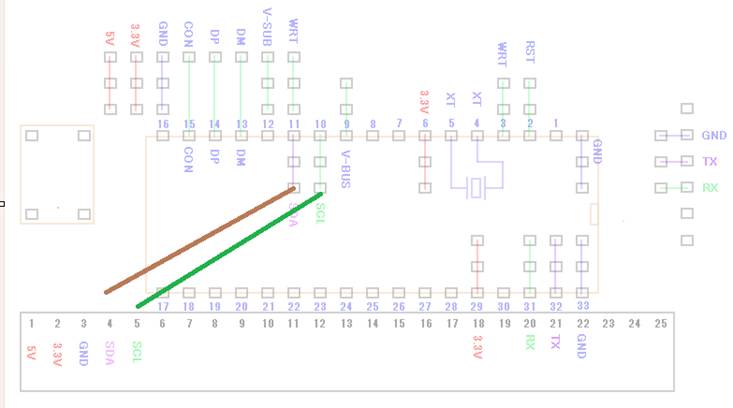

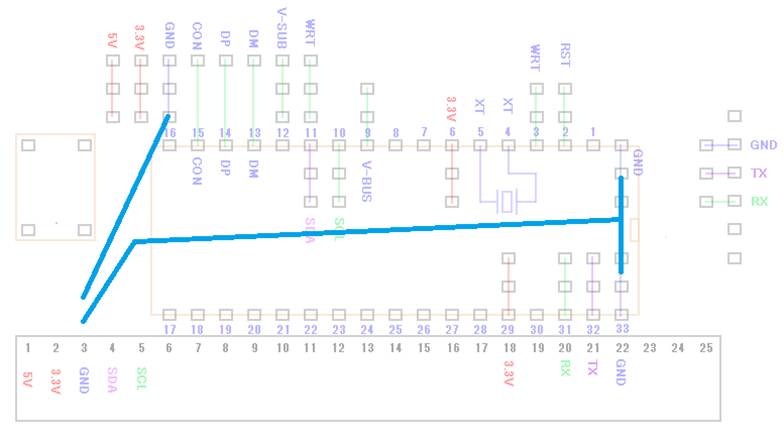

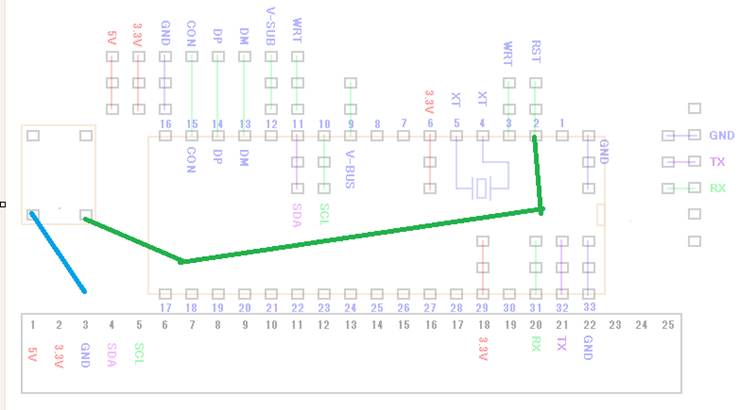

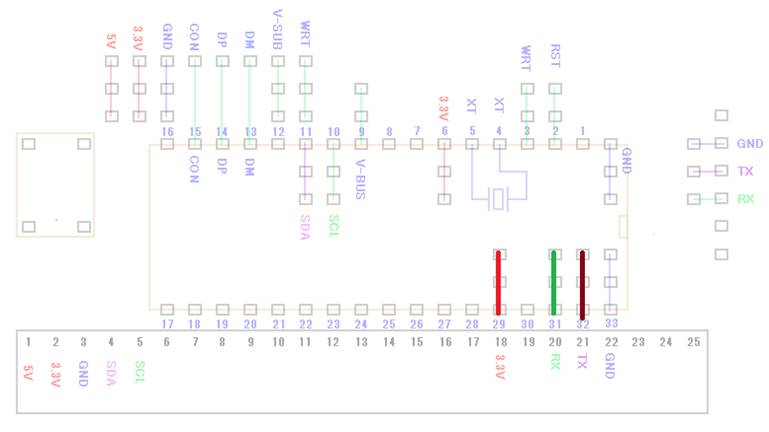

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;

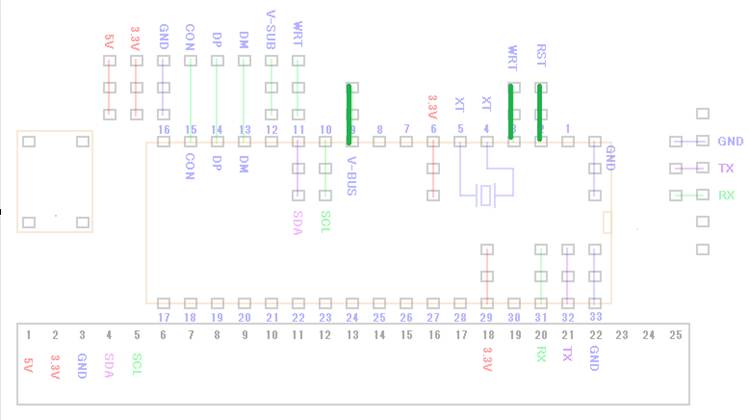

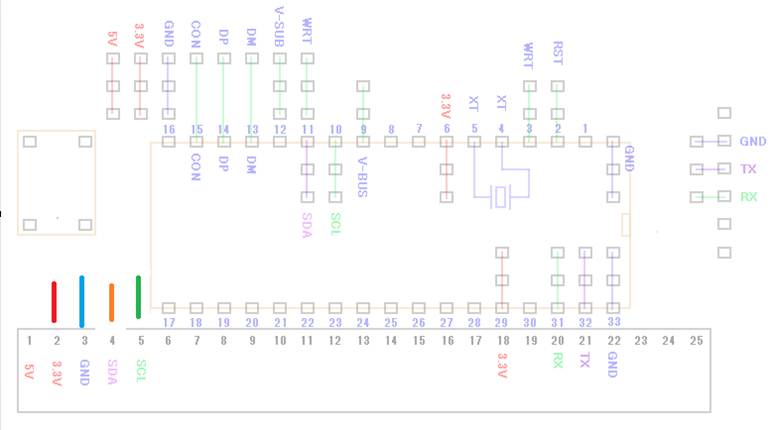

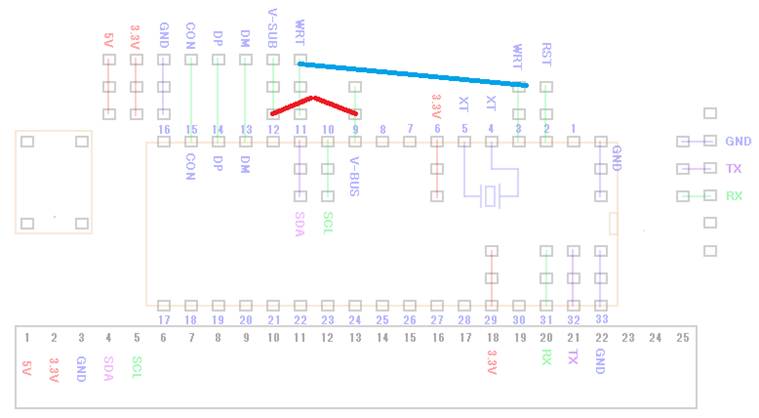

background:aqua'>配線の説明</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>5V</span><span
     style='font-size:11.0pt;font-family:游ゴシック'>は配置のみで、配線はしていません</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>SDA  SCL  </span><span
     style='font-size:11.0pt;font-family:游ゴシック'>は<span lang=EN-US>4.7K</span>Ωでプルアップしています</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>配線の手間を節約するため、ピンソケット<span lang=EN-US>(</span>メス<span
     lang=EN-US>)</span>とＩＣソケットを同じ穴に接続しています</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>LPC11U35</span><span
     style='font-size:11.0pt;font-family:游ゴシック'>マイコンの<span lang=EN-US>17-33</span>ピンは配線が必要ありません</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>ただ、<span lang=EN-US>33</span>ピン<span lang=EN-US>-GND
     29</span>ピン<span lang=EN-US>-3.3V </span>は重複して、無駄になります</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>プログラムの書き込みは、<span lang=EN-US>USB</span>回路で実行しているのでシリアル通信は別のコネクタが必要です</span></li>

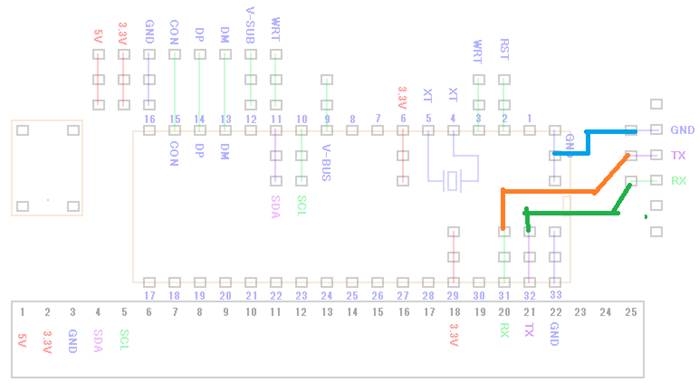

 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>31</span><span
     style='font-size:11.0pt;font-family:游ゴシック'>ピン<span lang=EN-US>-RX  32</span>ピン<span
     lang=EN-US>-TX </span>は<span lang=EN-US>PIO</span>に流用できると思いますが、実験で検証します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>ピンソケットメスの<span lang=EN-US> 23 24 25 </span>は未使用です</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>マイコン側<span lang=EN-US> 1  7  8  12  16  </span>が<span
     lang=EN-US>PIO</span>として使えるピンです</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>今回は配線していませんが、<span lang=EN-US>LED</span>占有のピンを割り当てると、<span
     lang=EN-US>4</span>本残ります</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>ピンソケットを<span lang=EN-US>26</span>まで増設して、<span
     lang=EN-US> 23  24  25  26 </span>に配線するか？</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>マイコン<span lang=EN-US>33</span>ピンは<span lang=EN-US>GND </span>に接続せず、解放すれば
     ピンソケットの増設は不要です</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>または、配線距離を短くするため、<span lang=EN-US>USB</span>コネクタの右横に<span
     lang=EN-US>4</span>ピンソケットを増設するか？</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>今後検討が必要です</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>動作確認<span lang=EN-US>LED</span>を何番にするかも、決められていません</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=634 height=348 id="図 3"
src="G2502_lpc11u35_cpu_bord_report.files/image003.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

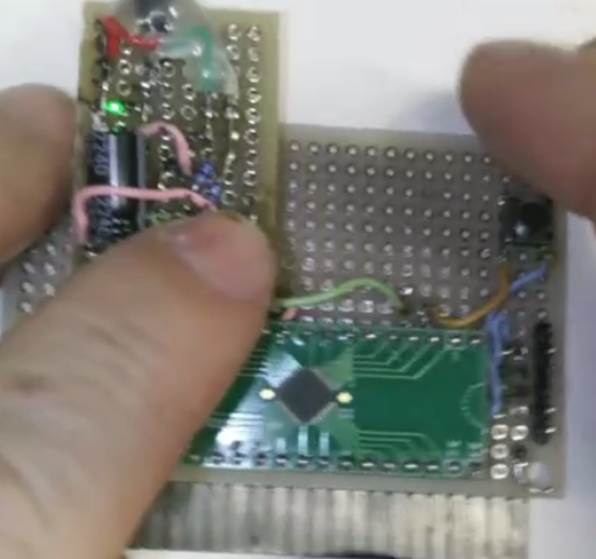

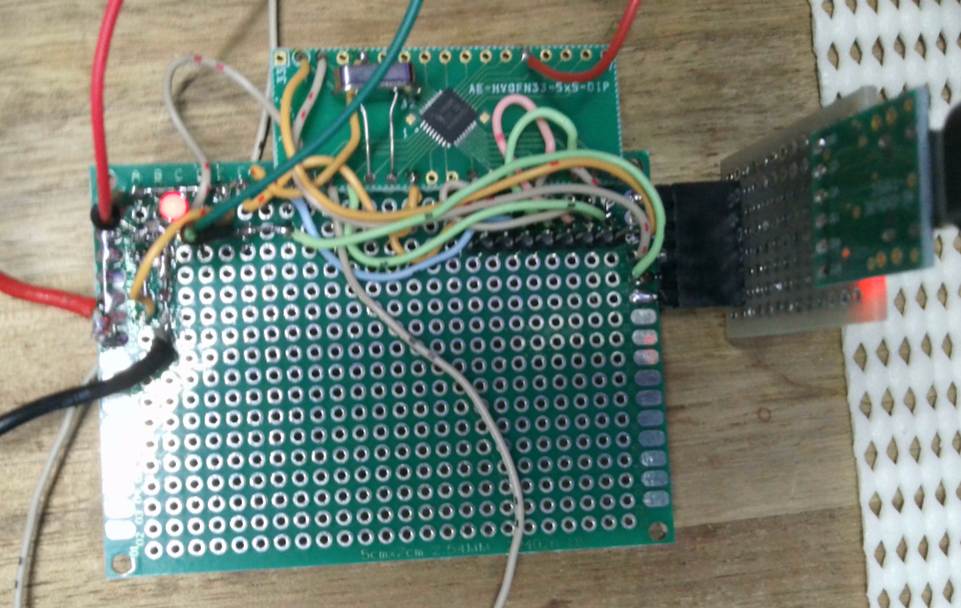

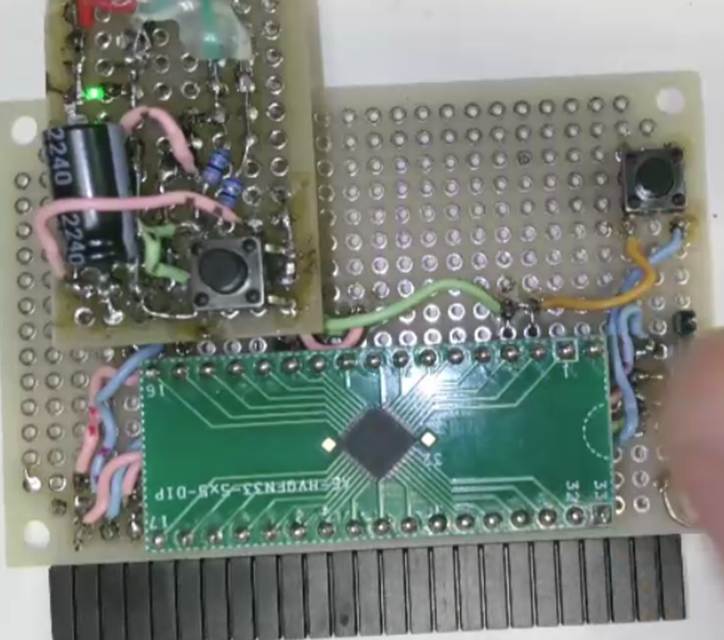

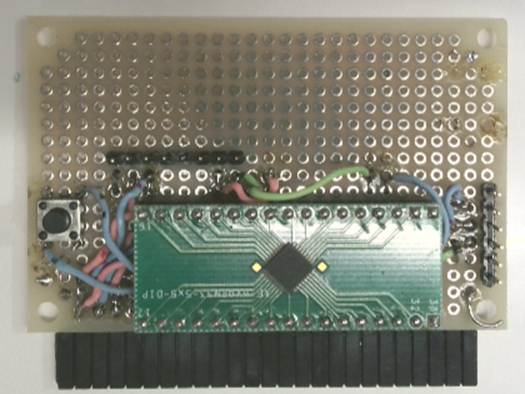

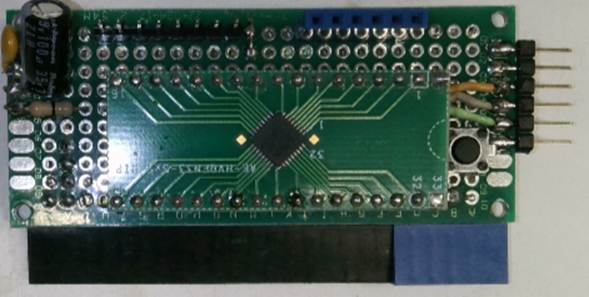

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>今回完成した基板です</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>ユニバーサル基板のサイズが大きく、余白が大きくなってしまいました</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=420 height=315 id="図 4"
src="G2502_lpc11u35_cpu_bord_report.files/image004.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>下記は社内で使ってきたユニバーサル基板です</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>手元に在庫がなく、使えませんでしたが、このサイズが良いかもしれません</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=471 height=238 id="図 5"
src="G2502_lpc11u35_cpu_bord_report.files/image005.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

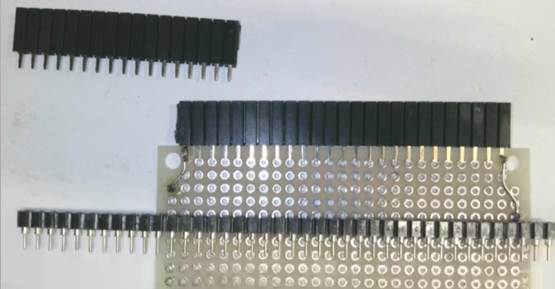

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=444 height=231 id="図 6"
src="G2502_lpc11u35_cpu_bord_report.files/image006.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=632 height=352 id="図 7"
src="G2502_lpc11u35_cpu_bord_report.files/image007.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

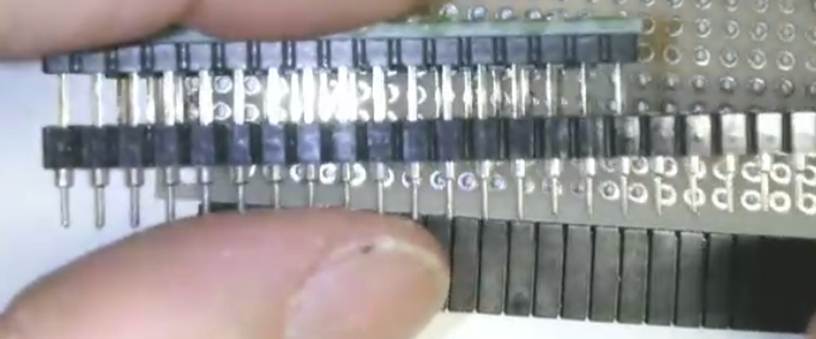

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=653 height=271 id="図 8"
src="G2502_lpc11u35_cpu_bord_report.files/image008.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=525 height=408 id="図 9"
src="G2502_lpc11u35_cpu_bord_report.files/image009.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

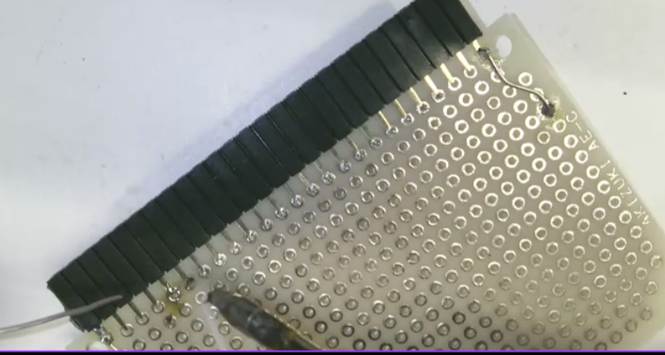

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=531 height=284 id="図 10"
src="G2502_lpc11u35_cpu_bord_report.files/image010.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

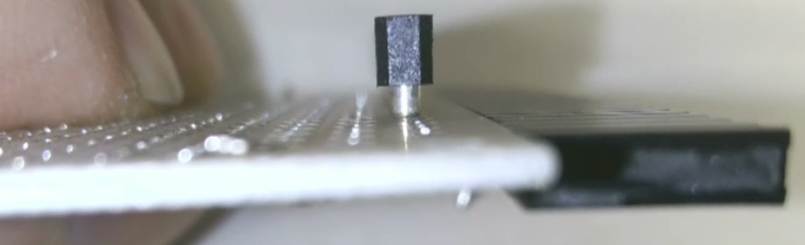

游ゴシック'><img border=0 width=644 height=196 id="図 11"
src="G2502_lpc11u35_cpu_bord_report.files/image011.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

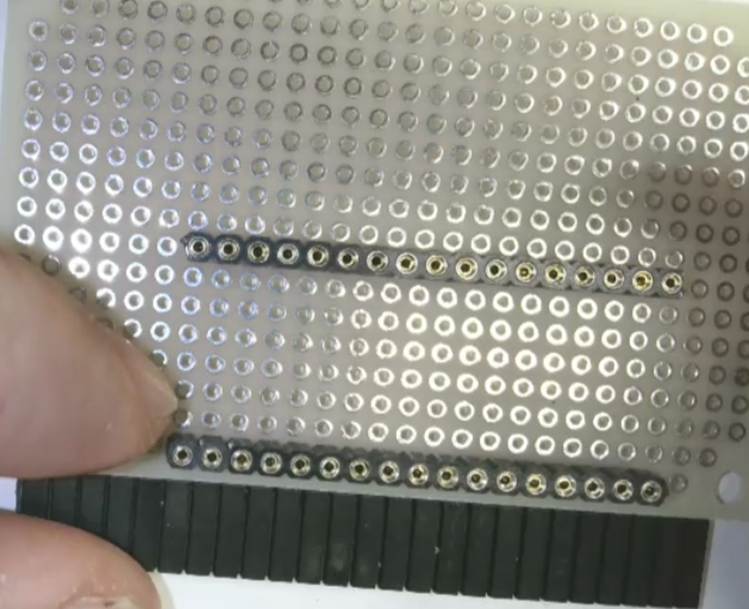

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=599 height=487 id="図 12"
src="G2502_lpc11u35_cpu_bord_report.files/image012.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

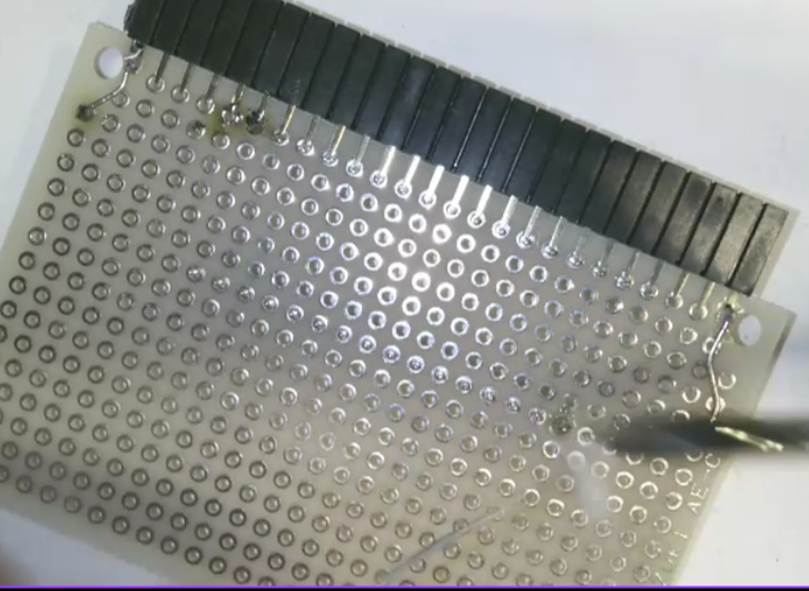

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=647 height=473 id="図 13"
src="G2502_lpc11u35_cpu_bord_report.files/image013.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

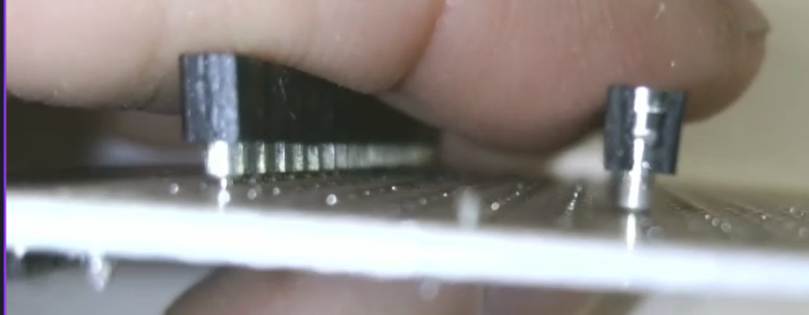

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=647 height=252 id="図 14"
src="G2502_lpc11u35_cpu_bord_report.files/image014.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

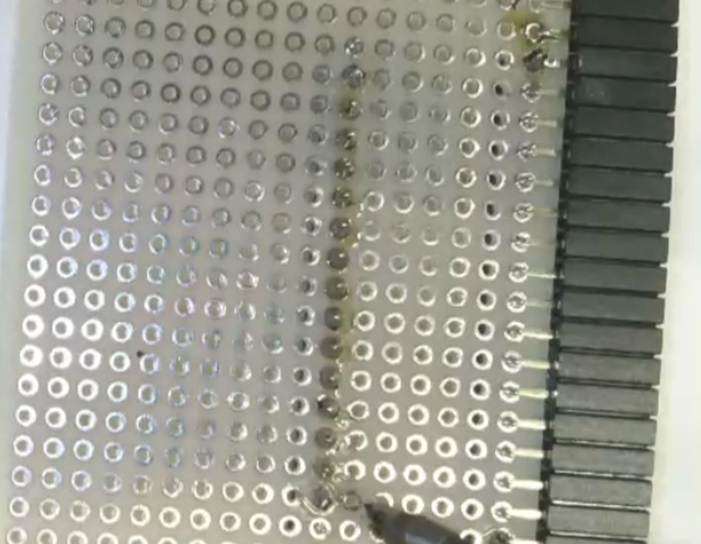

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=561 height=435 id="図 15"
src="G2502_lpc11u35_cpu_bord_report.files/image015.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

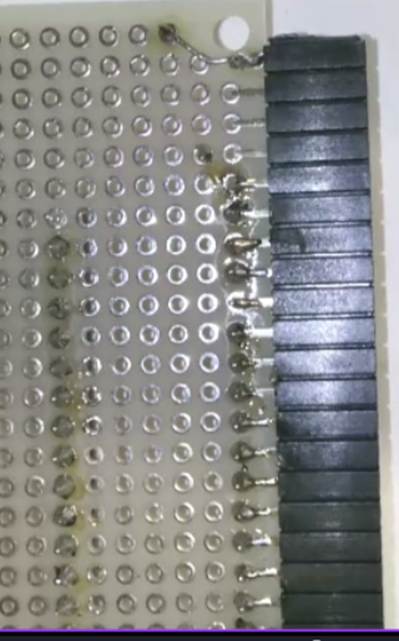

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=319 height=513 id="図 16"
src="G2502_lpc11u35_cpu_bord_report.files/image016.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=489 height=318 id="図 17"
src="G2502_lpc11u35_cpu_bord_report.files/image017.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

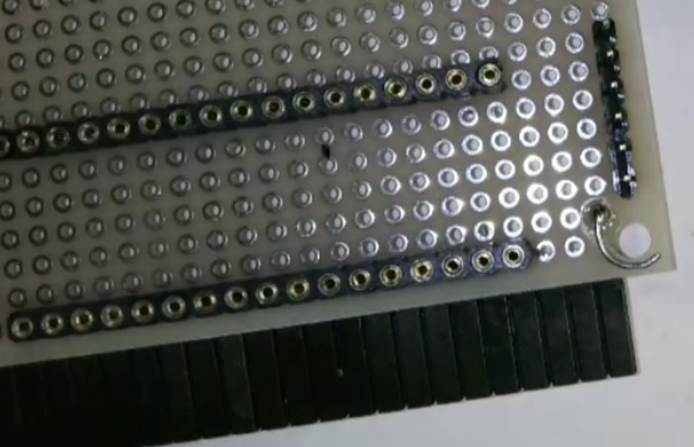

游ゴシック'><img border=0 width=555 height=358 id="図 18"
src="G2502_lpc11u35_cpu_bord_report.files/image018.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

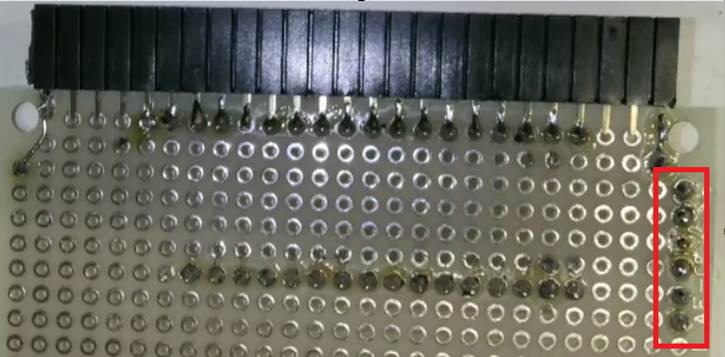

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=580 height=286 id="図 19"
src="G2502_lpc11u35_cpu_bord_report.files/image019.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

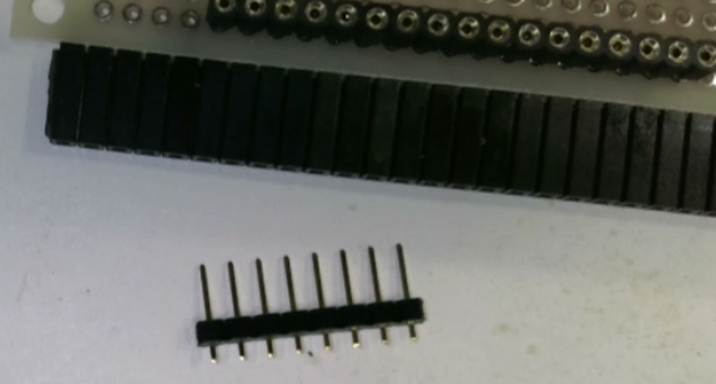

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=573 height=307 id="図 20"
src="G2502_lpc11u35_cpu_bord_report.files/image020.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

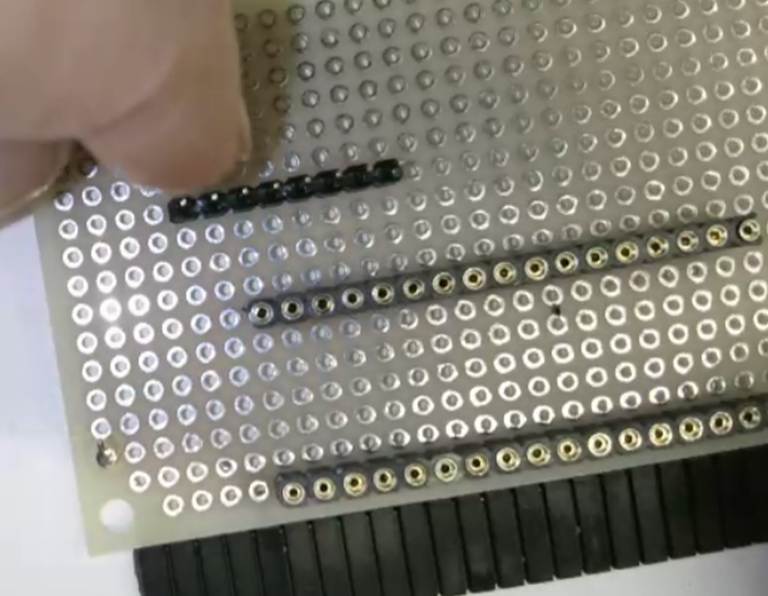

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=614 height=477 id="図 21"
src="G2502_lpc11u35_cpu_bord_report.files/image021.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

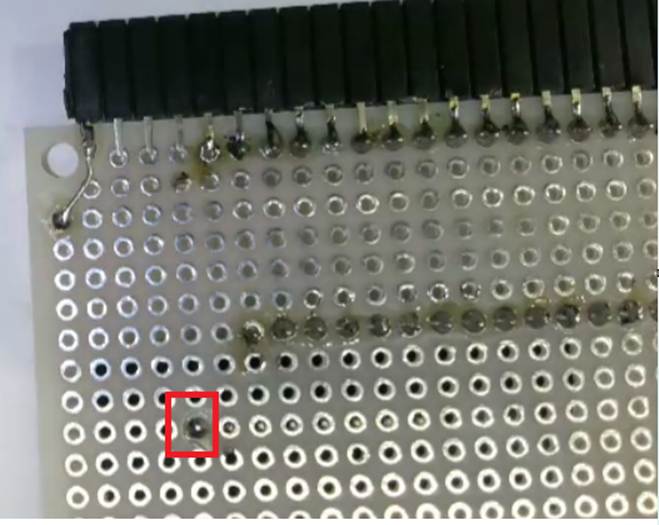

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=527 height=420 id="図 22"
src="G2502_lpc11u35_cpu_bord_report.files/image022.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

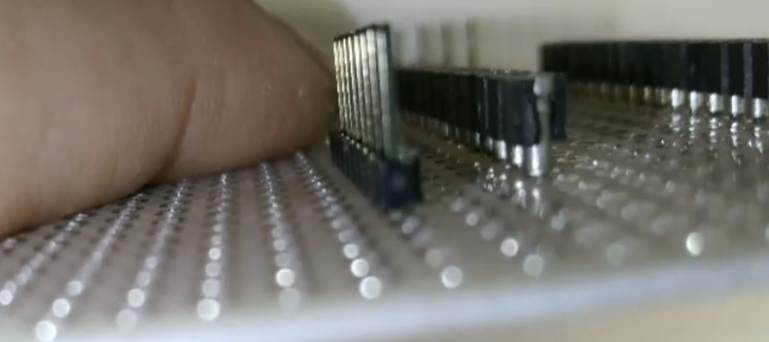

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=615 height=274 id="図 23"
src="G2502_lpc11u35_cpu_bord_report.files/image023.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

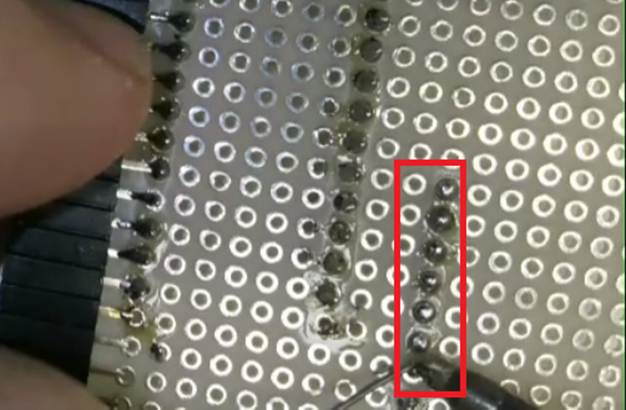

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=501 height=328 id="図 24"
src="G2502_lpc11u35_cpu_bord_report.files/image024.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

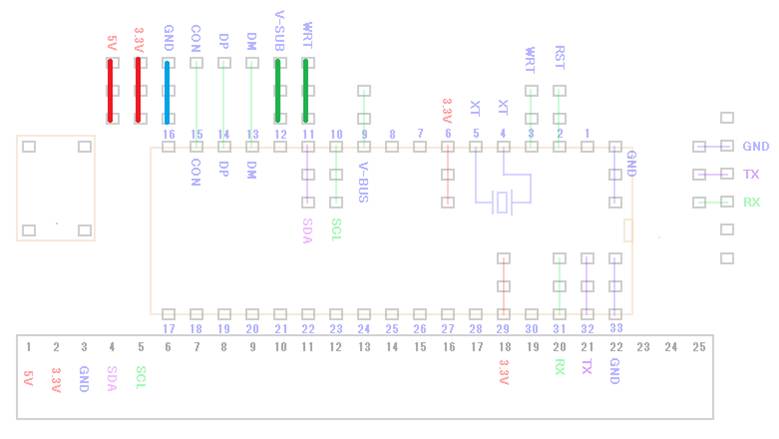

游ゴシック'><img border=0 width=623 height=351 id="図 25"
src="G2502_lpc11u35_cpu_bord_report.files/image025.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

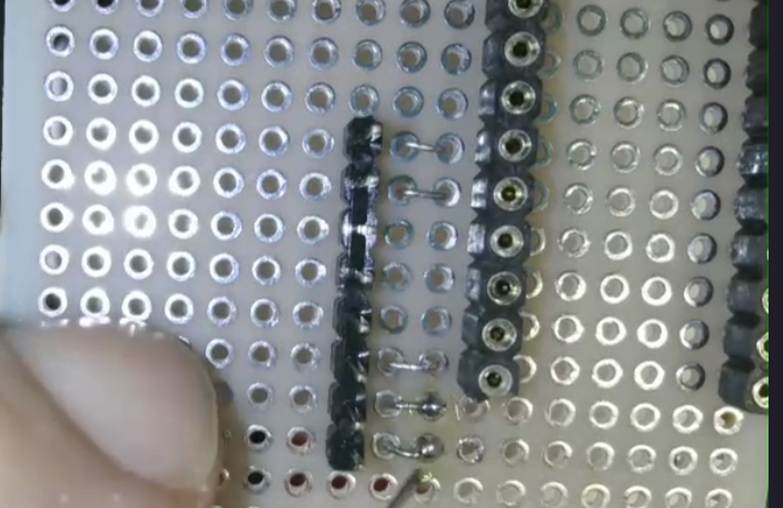

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=626 height=406 id="図 26"
src="G2502_lpc11u35_cpu_bord_report.files/image026.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

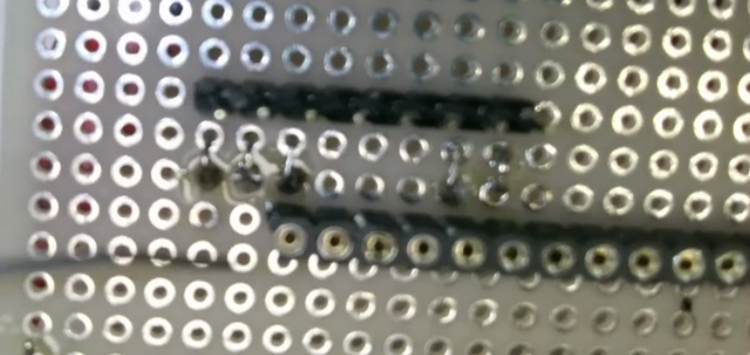

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=600 height=284 id="図 27"
src="G2502_lpc11u35_cpu_bord_report.files/image027.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

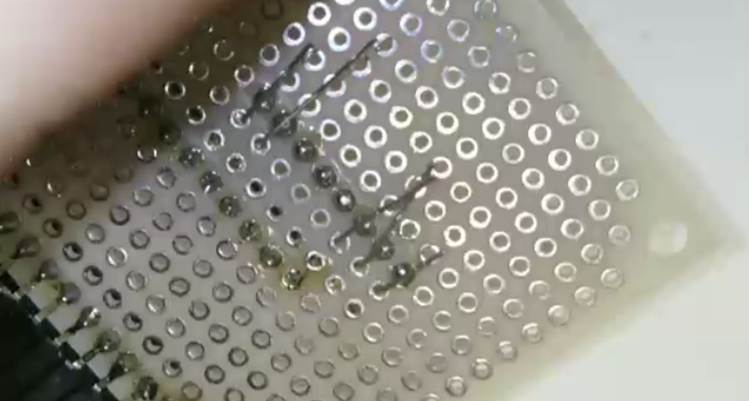

游ゴシック'><img border=0 width=599 height=321 id="図 28"
src="G2502_lpc11u35_cpu_bord_report.files/image028.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

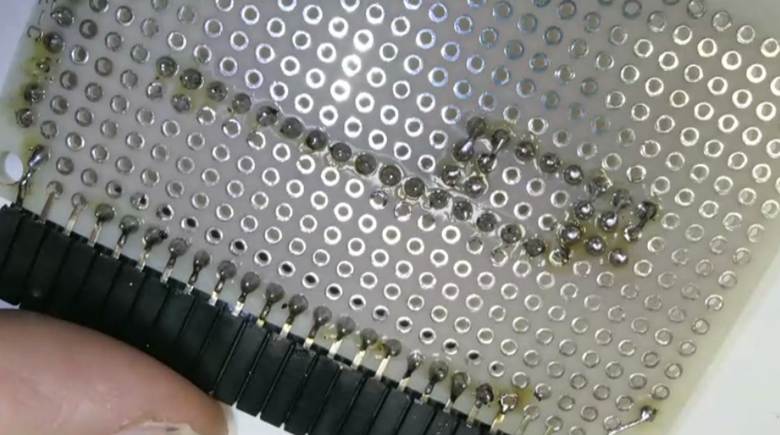

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=624 height=348 id="図 29"
src="G2502_lpc11u35_cpu_bord_report.files/image029.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=632 height=360 id="図 30"
src="G2502_lpc11u35_cpu_bord_report.files/image030.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

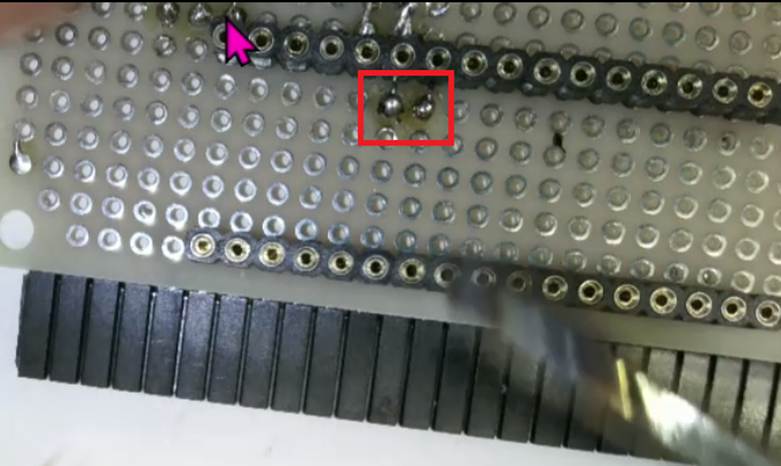

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=625 height=373 id="図 31"
src="G2502_lpc11u35_cpu_bord_report.files/image031.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=629 height=350 id="図 32"
src="G2502_lpc11u35_cpu_bord_report.files/image032.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

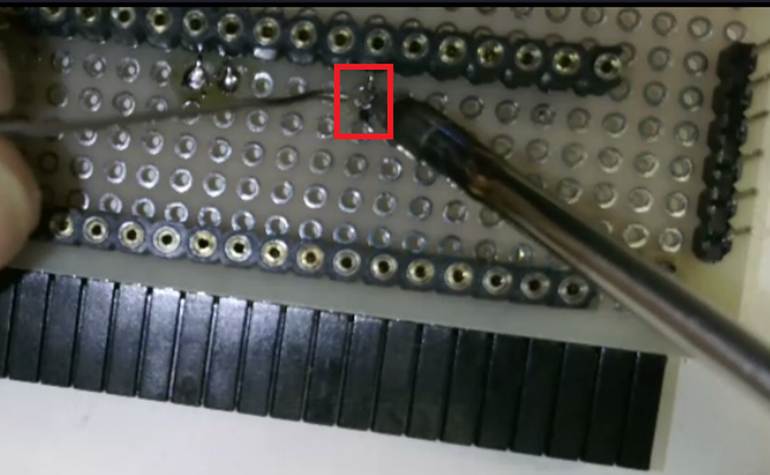

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=616 height=380 id="図 33"
src="G2502_lpc11u35_cpu_bord_report.files/image033.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

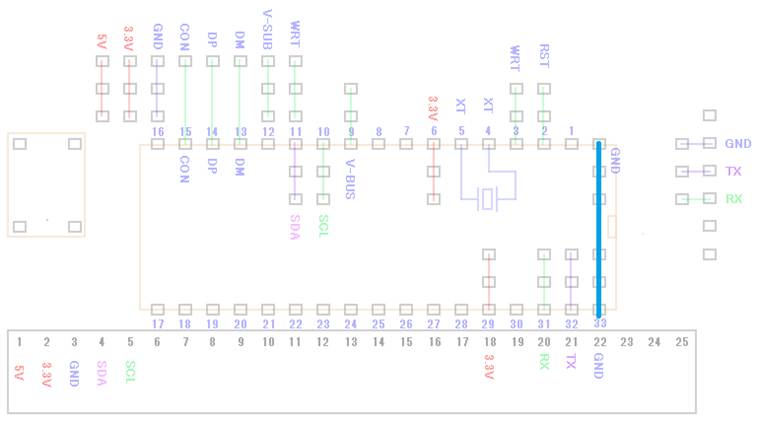

游ゴシック'><img border=0 width=606 height=342 id="図 34"
src="G2502_lpc11u35_cpu_bord_report.files/image034.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

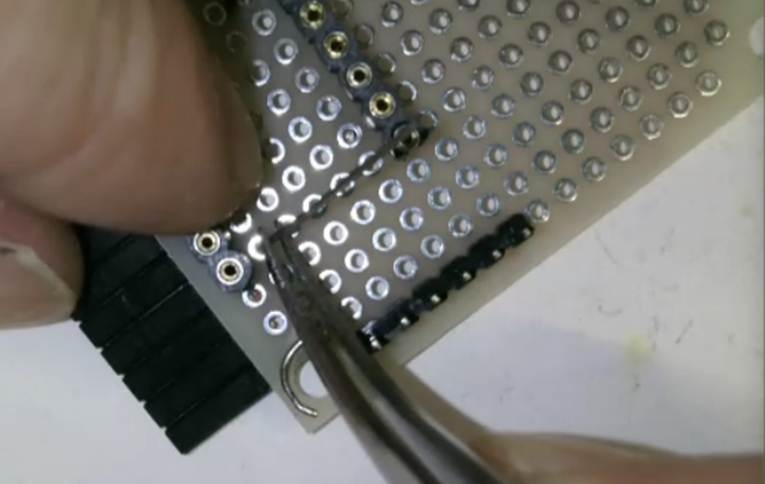

游ゴシック'><img border=0 width=612 height=387 id="図 35"
src="G2502_lpc11u35_cpu_bord_report.files/image035.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=615 height=346 id="図 36"
src="G2502_lpc11u35_cpu_bord_report.files/image036.jpg"></span></p>

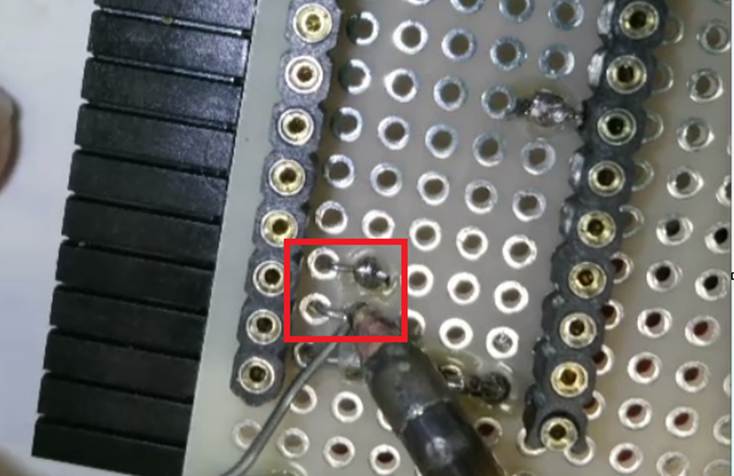

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=587 height=381 id="図 37"
src="G2502_lpc11u35_cpu_bord_report.files/image037.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

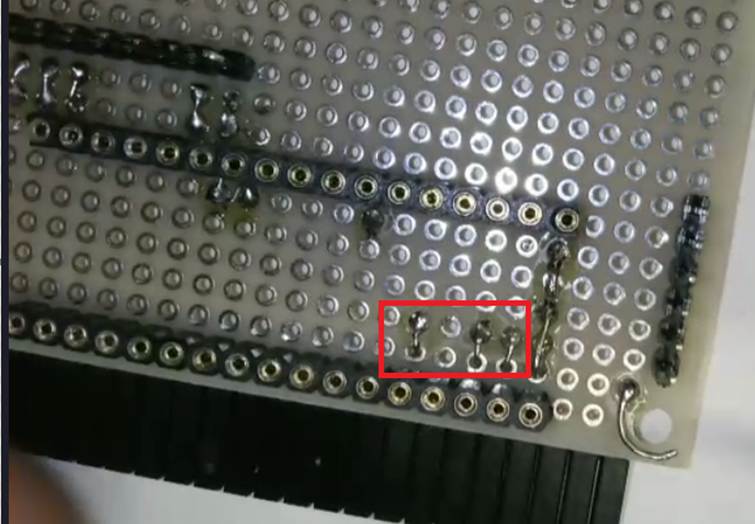

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=604 height=419 id="図 38"
src="G2502_lpc11u35_cpu_bord_report.files/image038.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

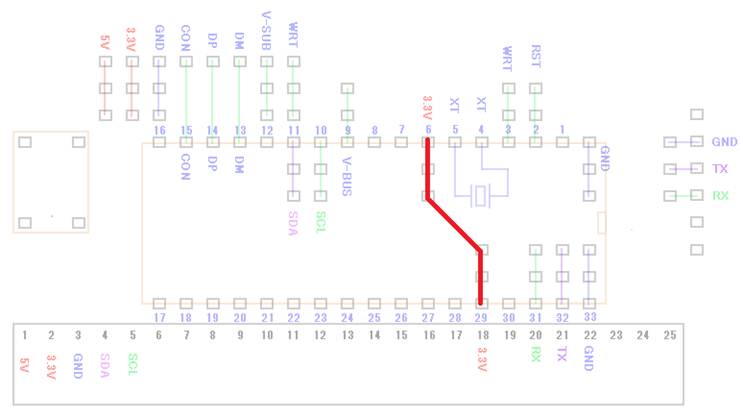

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=594 height=335 id="図 39"
src="G2502_lpc11u35_cpu_bord_report.files/image039.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

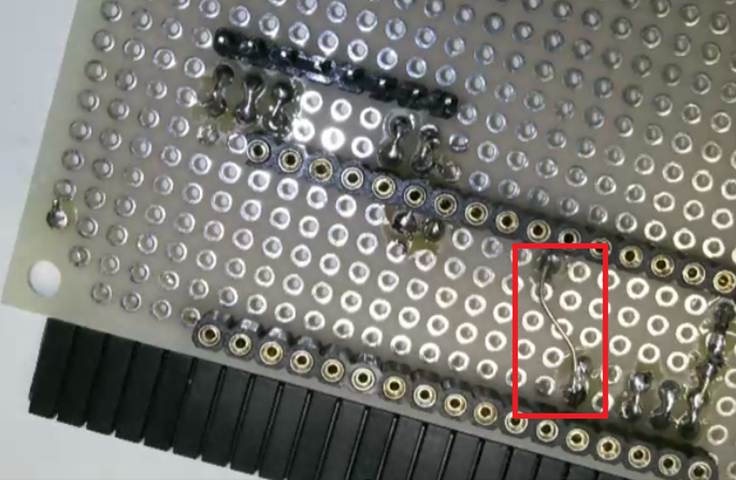

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=589 height=384 id="図 40"
src="G2502_lpc11u35_cpu_bord_report.files/image040.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

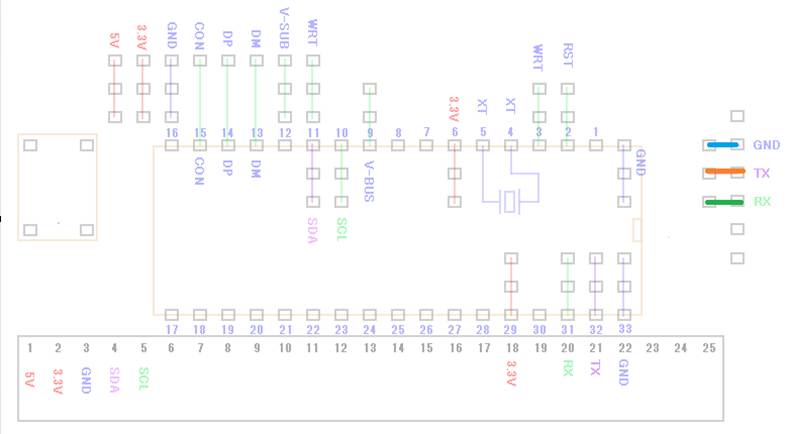

游ゴシック'><img border=0 width=631 height=347 id="図 41"
src="G2502_lpc11u35_cpu_bord_report.files/image041.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

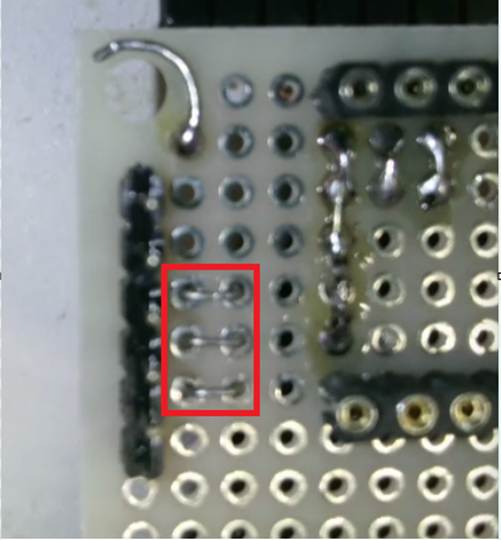

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=401 height=432 id="図 42"
src="G2502_lpc11u35_cpu_bord_report.files/image042.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

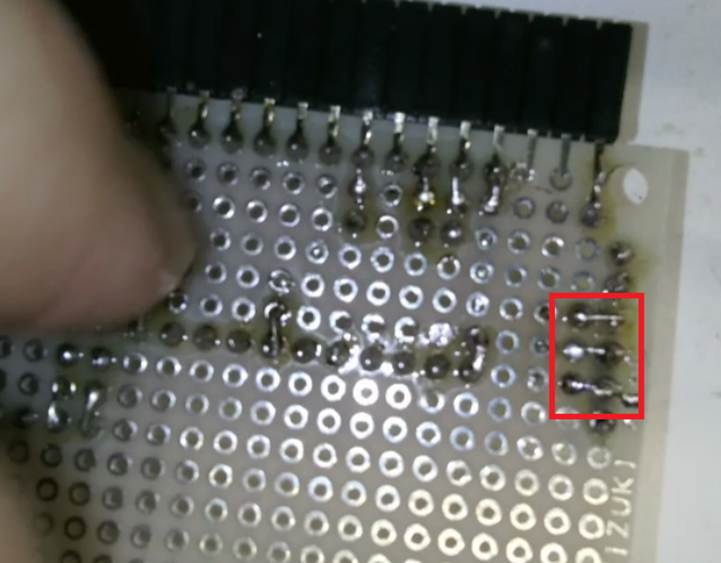

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=577 height=450 id="図 43"
src="G2502_lpc11u35_cpu_bord_report.files/image043.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=618 height=344 id="図 44"
src="G2502_lpc11u35_cpu_bord_report.files/image044.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

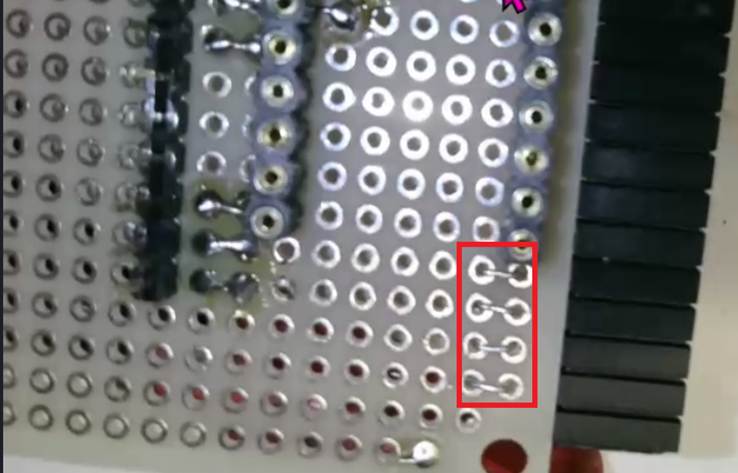

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=590 height=378 id="図 45"
src="G2502_lpc11u35_cpu_bord_report.files/image045.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

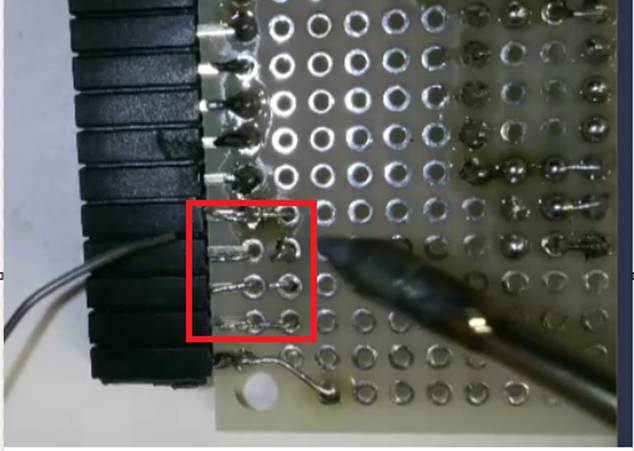

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=507 height=361 id="図 46"
src="G2502_lpc11u35_cpu_bord_report.files/image046.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

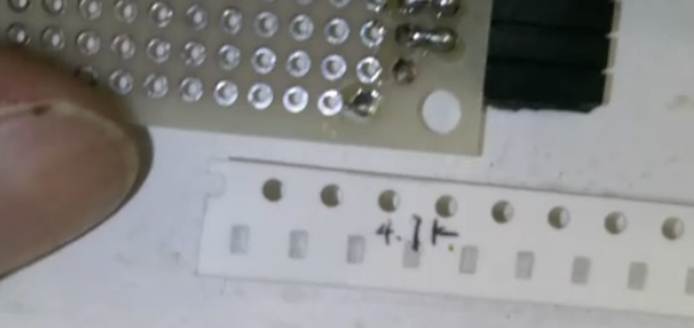

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=555 height=262 id="図 47"
src="G2502_lpc11u35_cpu_bord_report.files/image047.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

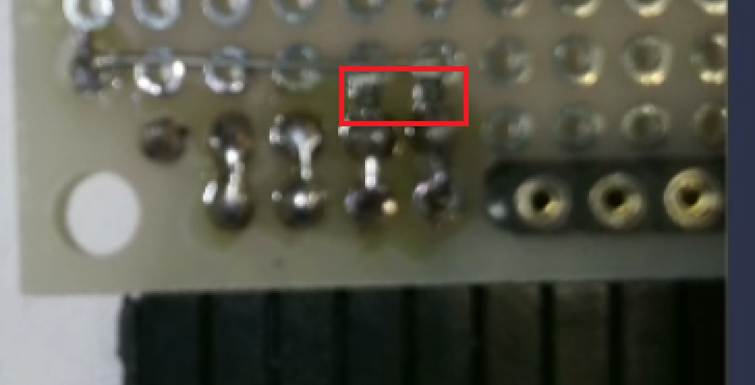

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=604 height=308 id="図 48"
src="G2502_lpc11u35_cpu_bord_report.files/image048.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

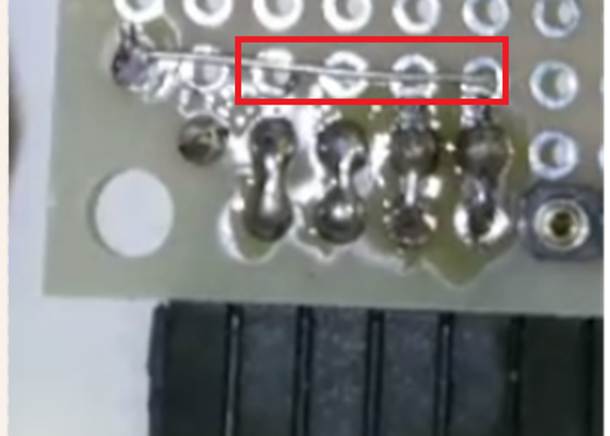

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=488 height=349 id="図 49"
src="G2502_lpc11u35_cpu_bord_report.files/image049.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

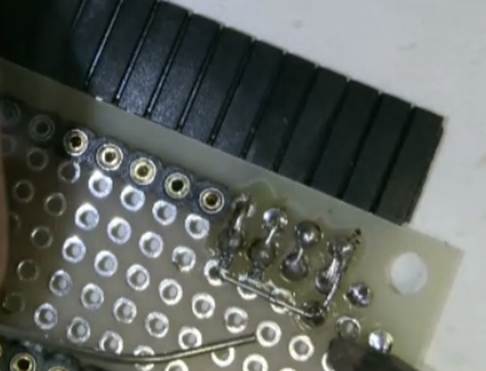

游ゴシック'><img border=0 width=389 height=297 id="図 50"
src="G2502_lpc11u35_cpu_bord_report.files/image050.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=586 height=326 id="図 51"
src="G2502_lpc11u35_cpu_bord_report.files/image051.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

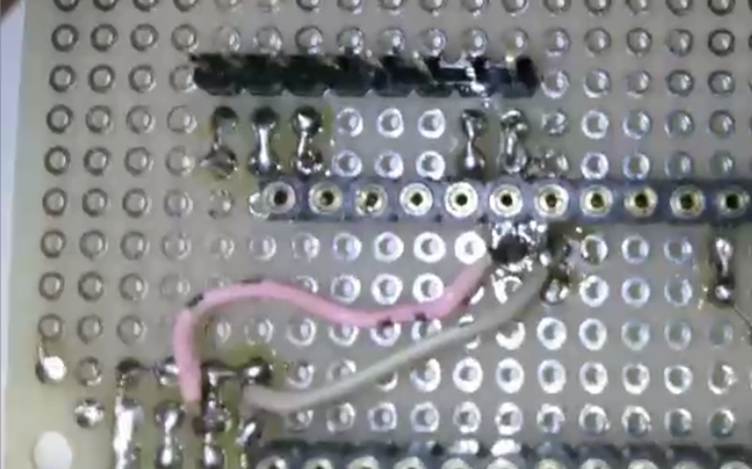

游ゴシック'><img border=0 width=602 height=375 id="図 52"
src="G2502_lpc11u35_cpu_bord_report.files/image052.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=627 height=353 id="図 53"
src="G2502_lpc11u35_cpu_bord_report.files/image053.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

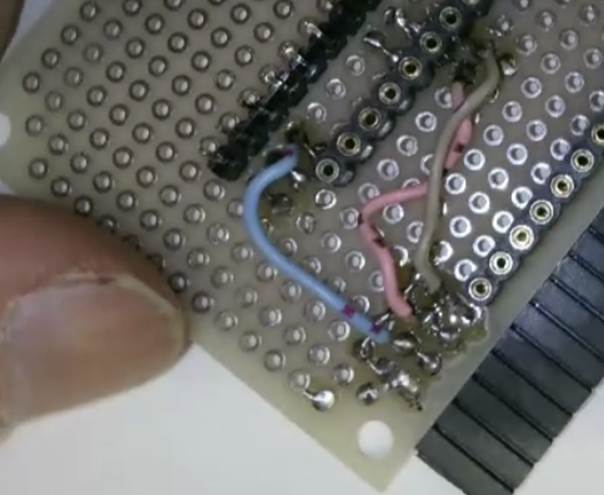

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=483 height=396 id="図 54"
src="G2502_lpc11u35_cpu_bord_report.files/image054.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

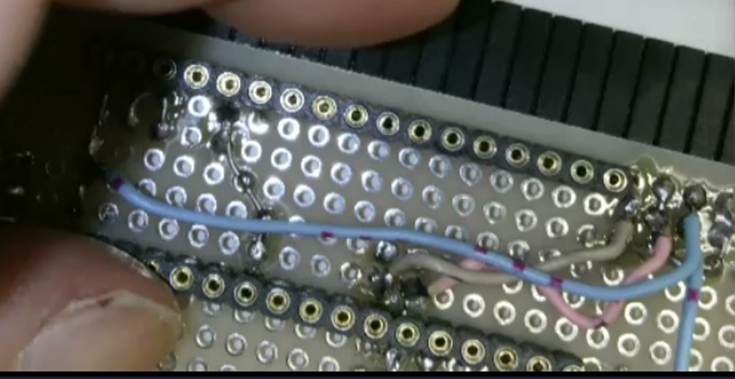

游ゴシック'><img border=0 width=588 height=303 id="図 55"
src="G2502_lpc11u35_cpu_bord_report.files/image055.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

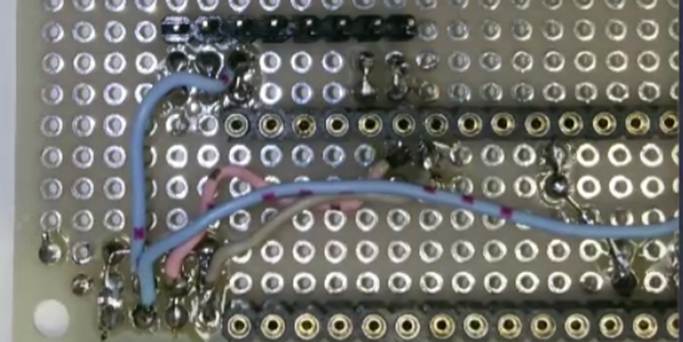

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=546 height=274 id="図 56"
src="G2502_lpc11u35_cpu_bord_report.files/image056.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=598 height=327 id="図 57"
src="G2502_lpc11u35_cpu_bord_report.files/image057.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

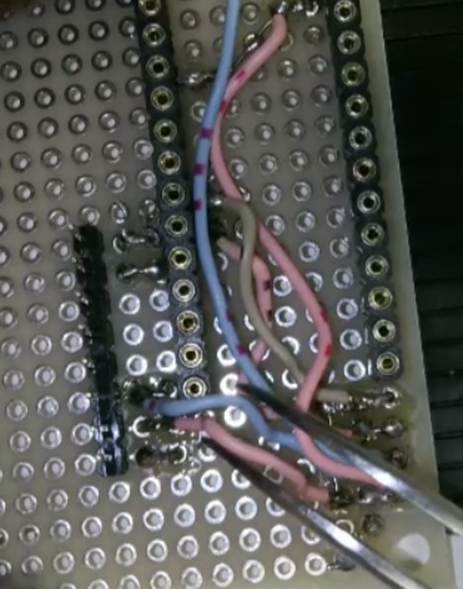

游ゴシック'><img border=0 width=370 height=471 id="図 58"
src="G2502_lpc11u35_cpu_bord_report.files/image058.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=559 height=314 id="図 59"
src="G2502_lpc11u35_cpu_bord_report.files/image059.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

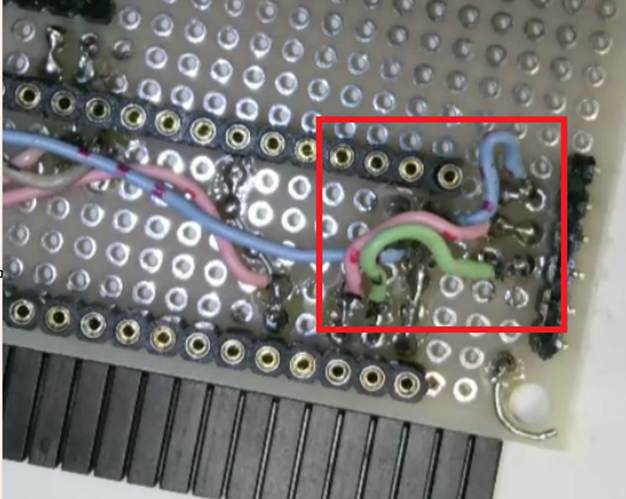

游ゴシック'><img border=0 width=501 height=399 id="図 60"
src="G2502_lpc11u35_cpu_bord_report.files/image060.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=599 height=336 id="図 61"
src="G2502_lpc11u35_cpu_bord_report.files/image061.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

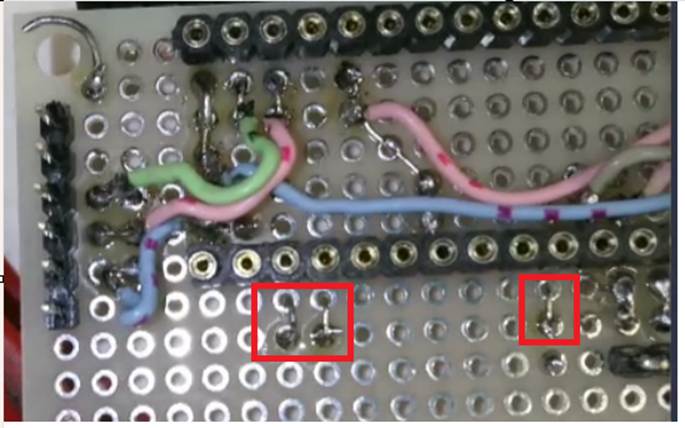

游ゴシック'><img border=0 width=548 height=342 id="図 62"
src="G2502_lpc11u35_cpu_bord_report.files/image062.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=607 height=334 id="図 63"
src="G2502_lpc11u35_cpu_bord_report.files/image063.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

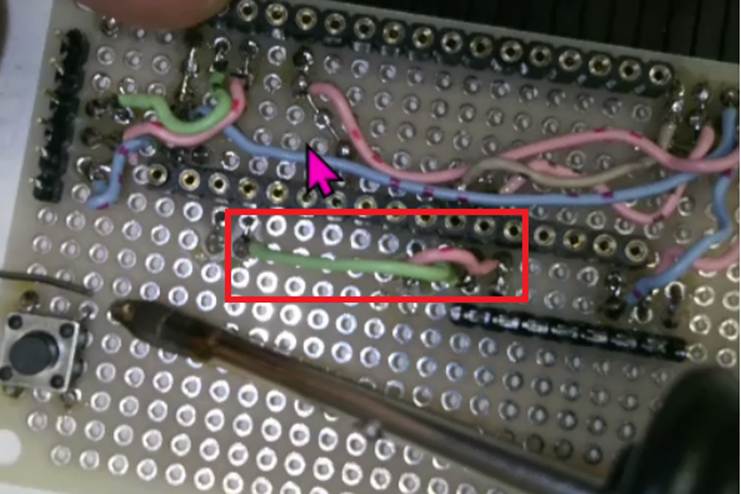

游ゴシック'><img border=0 width=593 height=395 id="図 64"
src="G2502_lpc11u35_cpu_bord_report.files/image064.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=591 height=328 id="図 65"
src="G2502_lpc11u35_cpu_bord_report.files/image065.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

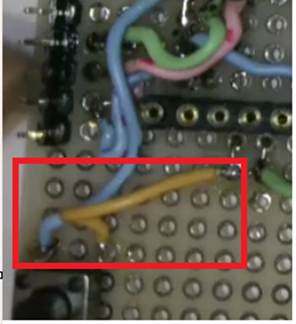

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=237 height=259 id="図 66"
src="G2502_lpc11u35_cpu_bord_report.files/image066.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=569 height=314 id="図 67"
src="G2502_lpc11u35_cpu_bord_report.files/image067.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=601 height=328 id="図 68"
src="G2502_lpc11u35_cpu_bord_report.files/image068.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

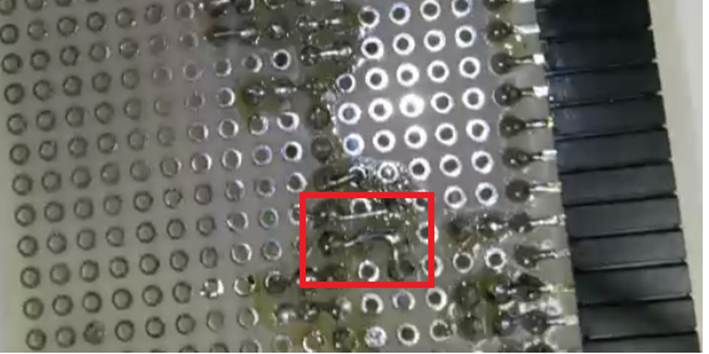

游ゴシック'><img border=0 width=567 height=283 id="図 69"
src="G2502_lpc11u35_cpu_bord_report.files/image069.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=610 height=346 id="図 70"
src="G2502_lpc11u35_cpu_bord_report.files/image070.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

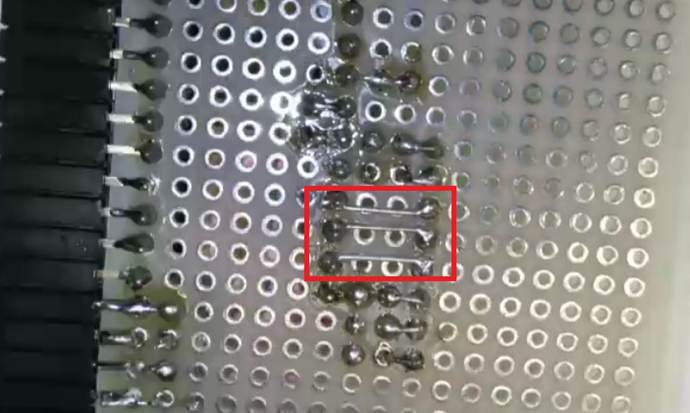

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=552 height=330 id="図 71"
src="G2502_lpc11u35_cpu_bord_report.files/image071.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>動作テスト</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>3.3V  GND</span><span
     style='font-size:11.0pt;font-family:游ゴシック'>　がショートしていないことを確認します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>導通テスターで、<span lang=EN-US>33PIN </span>が<span
     lang=EN-US>GND</span>に接続されていることを確認します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>6 PIN 29PIN </span><span
     style='font-size:11.0pt;font-family:游ゴシック'>が<span lang=EN-US> 3.3V </span>に接続されていることを確認します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>マイコン本体の電源が、逆に接続されると、高い確率で壊れるのでご注意ください</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>前回作成した、<span lang=EN-US>USB</span>らいたー基板　<span
     lang=EN-US>8PIN </span>を接続し、<span lang=EN-US>USB-A </span>をパソコンに接続します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>ライター基板のタクトスイッチ<span lang=EN-US>(WRT)</span>を押したまま、<span
     lang=EN-US>CPU</span>基板側のタクトスイッチ<span lang=EN-US>(</span>リセット<span
     lang=EN-US>)</span>を押します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

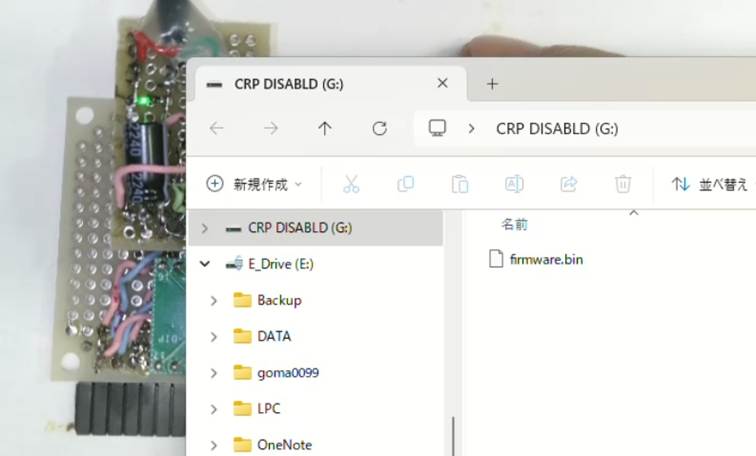

     font-family:游ゴシック'>ファイルエクスプローラが開き、<span lang=EN-US>firmware.bin  </span>というファイルが表示されれば、成功です</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=579 height=512 id="図 72"
src="G2502_lpc11u35_cpu_bord_report.files/image072.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=477 height=447 id="図 73"
src="G2502_lpc11u35_cpu_bord_report.files/image073.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=605 height=365 id="図 74"
src="G2502_lpc11u35_cpu_bord_report.files/image074.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>追記</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

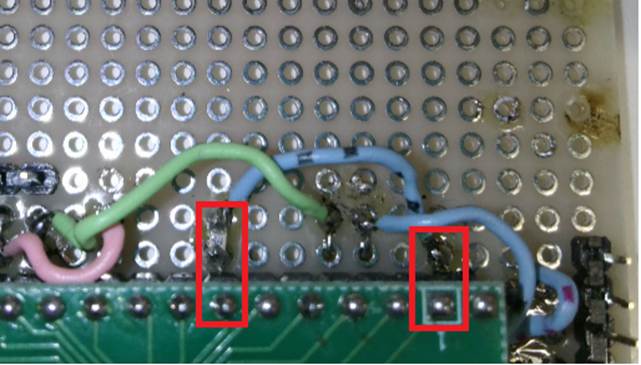

     font-family:游ゴシック'>マイコン電源に<span lang=EN-US>0.1uF</span>のセラミックコンデンサを追加します</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=513 height=292 id="図 75"
src="G2502_lpc11u35_cpu_bord_report.files/image075.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin-top:0mm;margin-right:0mm;margin-bottom:0mm;margin-left:27.0pt'><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

</div>

</body>

</html>
