<p style='margin:0mm'><span lang=EN-US style='font-size:20.0pt;font-family:
游ゴシック'>G2501_USB</span><span style='font-size:20.0pt;font-family:游ゴシック'>ライター基板</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:10.0pt;font-family:
游ゴシック;color:#767676'>2024</span><span style='font-size:10.0pt;font-family:游ゴシック;
color:#767676'>年<span lang=EN-US>12</span>月<span lang=EN-US>15</span>日</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:10.0pt;font-family:
游ゴシック;color:#767676'>9:29</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>G2501_lpc11u35_usb_wrt_bord_report</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>以下はユーチューブの動画リンクです</span></p>

<p style='margin:0mm'><span lang=EN-US><a href="https://youtu.be/Q5k4DKMbS6k"><span
style='font-size:11.0pt;font-family:游ゴシック'>G2501 LPC11U35 USB</span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>ライター</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=267 height=199 id="図 1"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image001.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

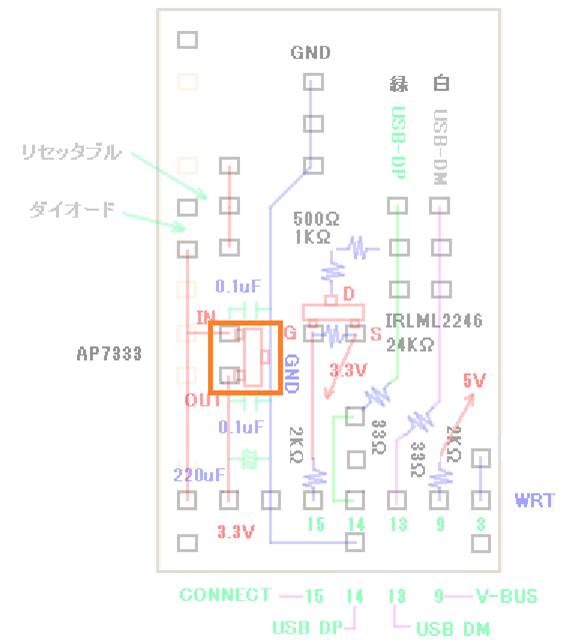

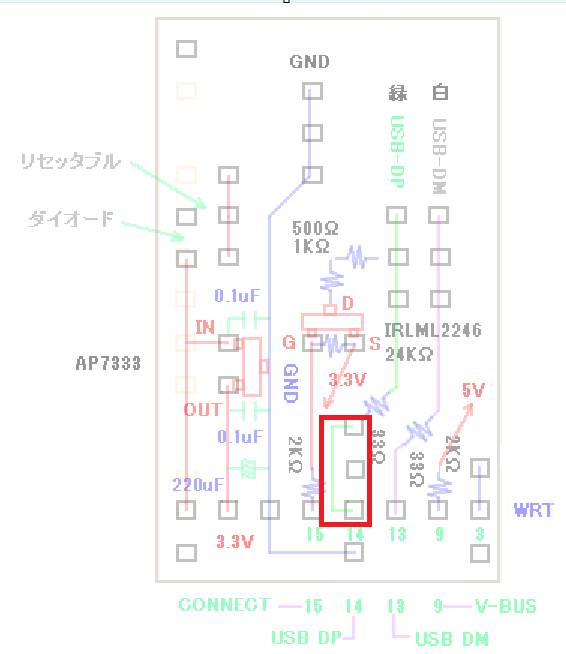

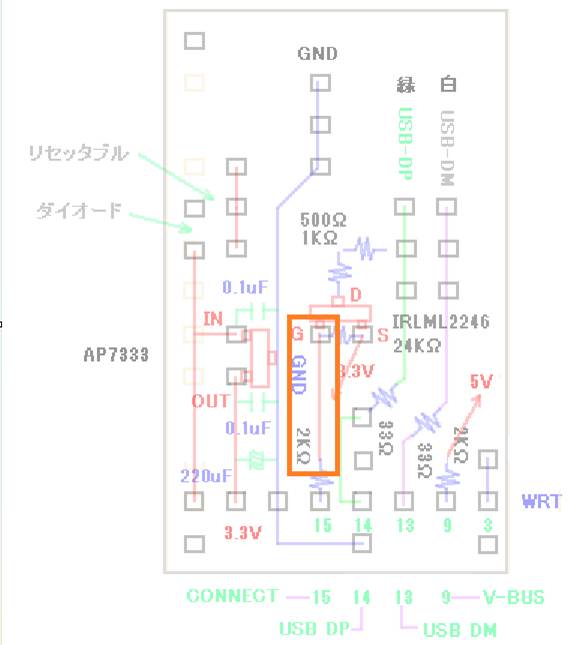

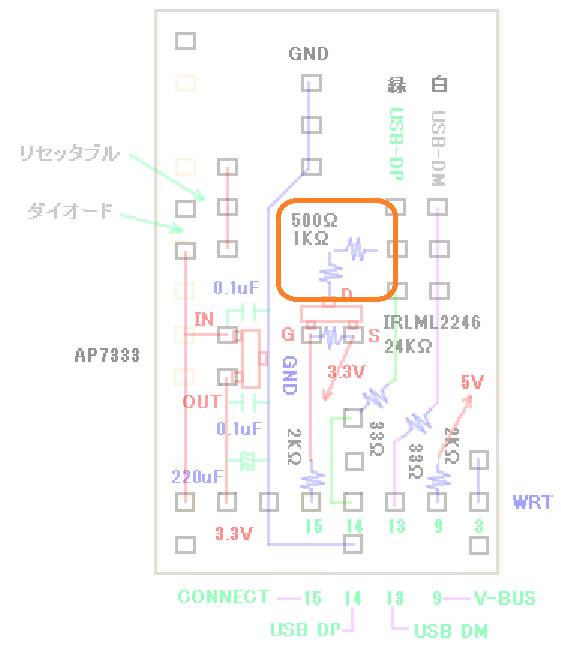

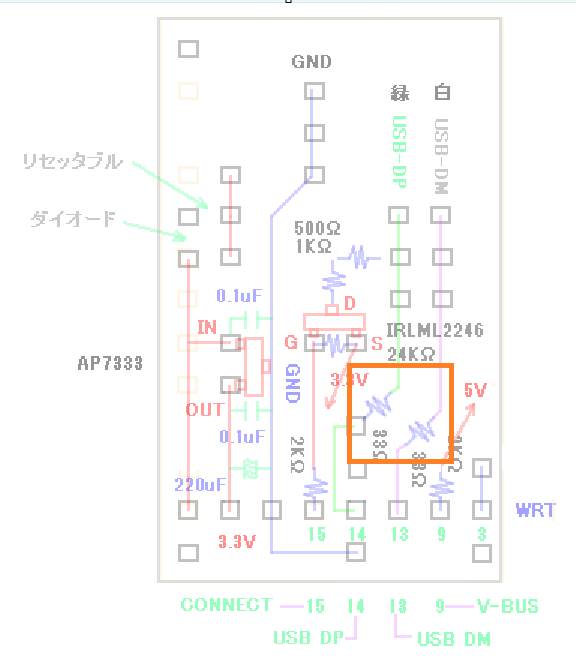

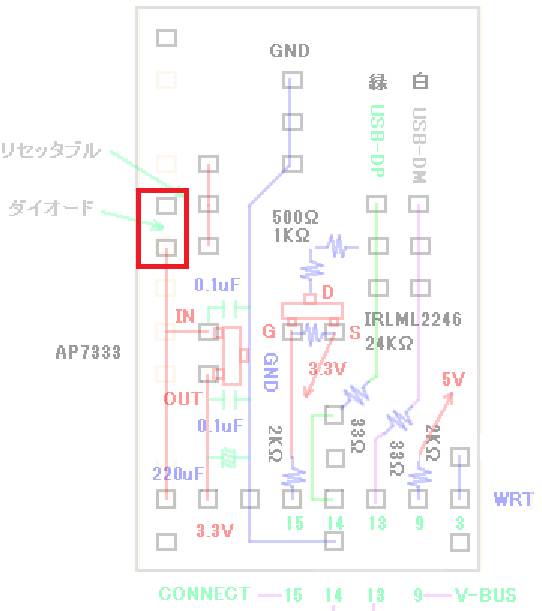

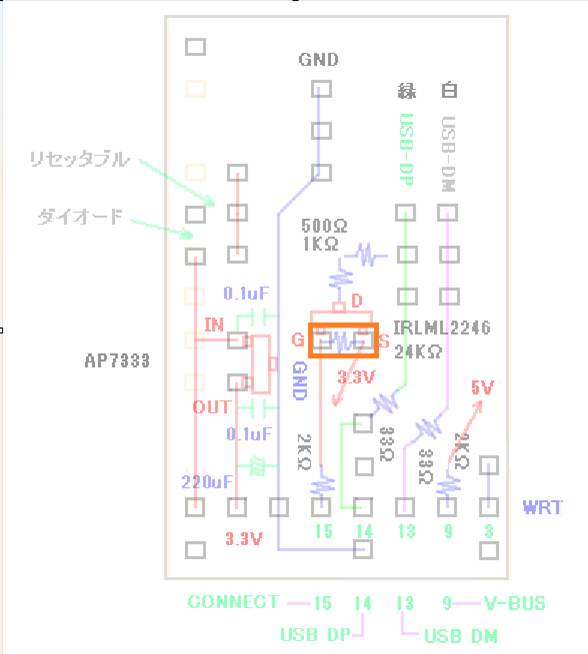

<p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック;
background:aqua'>配線図</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<ul style='margin-top:0mm' type=disc>

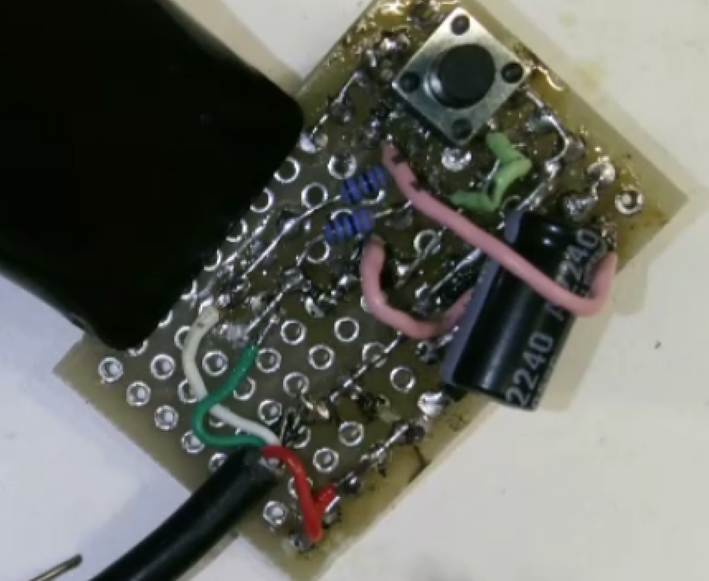

 <li class=MsoNormal style='vertical-align:middle'><span lang=EN-US
     style='font-size:11.0pt;font-family:游ゴシック'>USB</span><span
     style='font-size:11.0pt;font-family:游ゴシック'>コネクタはメスは基板側に使いません</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>プリント基板を設計したときに、利用します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

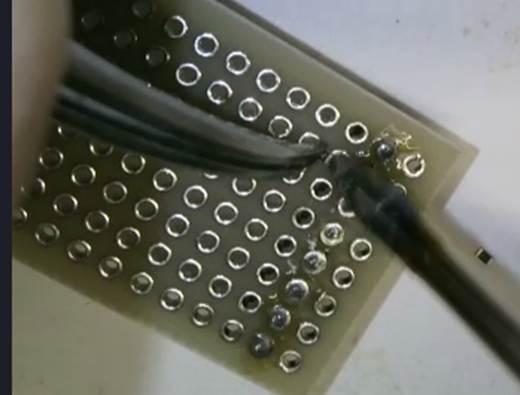

     font-family:游ゴシック'>ユニバーサル基板では、はがれる恐れがあり、<span lang=EN-US>USB-A</span>配線の片側被覆をむいて、直接はんだ付けします</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>断線防止のため、グールガンで固めてください</span></li>

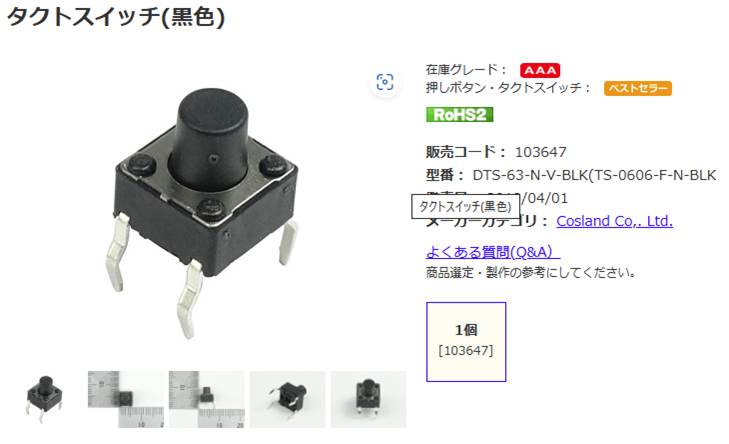

 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

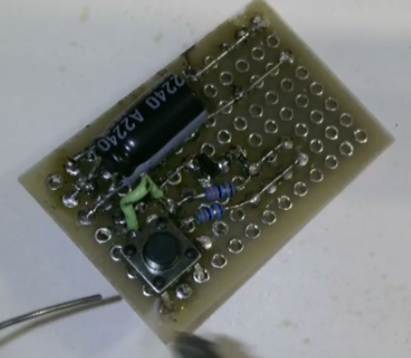

     font-family:游ゴシック'>ライターモードのためのタクトスイッチをこの基板に配置します</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

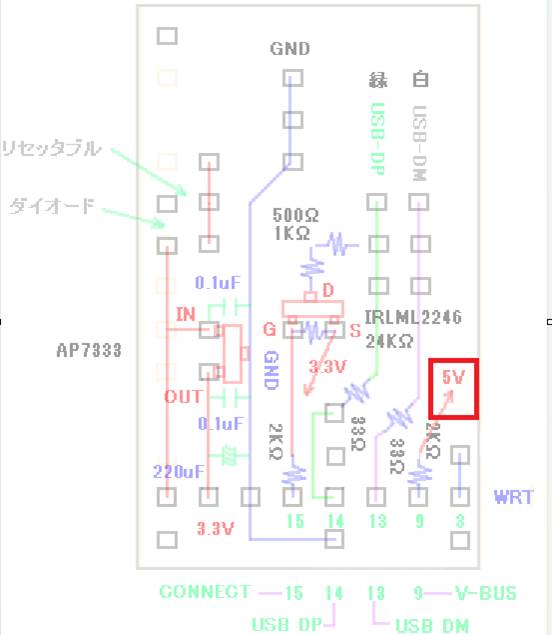

     font-family:游ゴシック'>５Ｖは配線していますが、現在は未使用です</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>実験で<span lang=EN-US>5V</span>が必要な場合は、ブレッドボード側で準備してください</span></li>

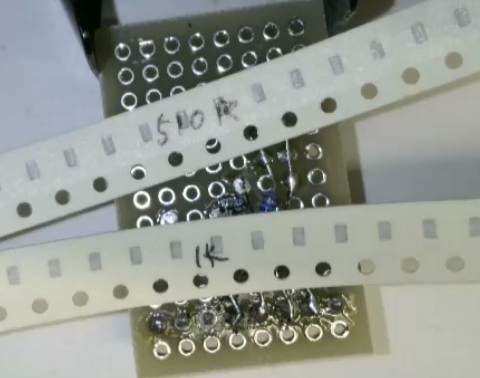

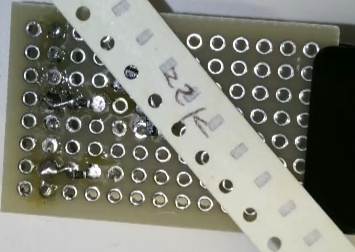

 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

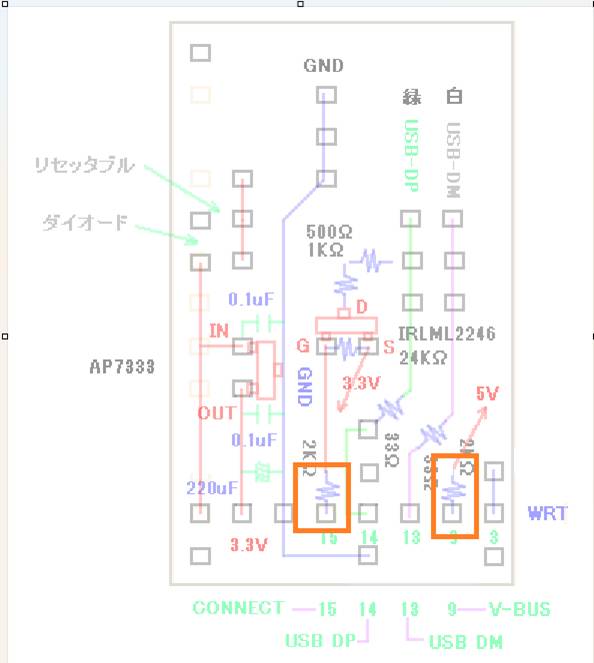

     font-family:游ゴシック'>メーカー提示の回路では、<span lang=EN-US>IRLML2246</span>の抵抗は、<span
     lang=EN-US>24K</span>Ωとなっていましたが、チップ抵抗に<span lang=EN-US> 22K</span>Ωしかなくそれを使っています</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>動作が不安定な場合は、<span lang=EN-US>24K</span>Ωに交換してください</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;

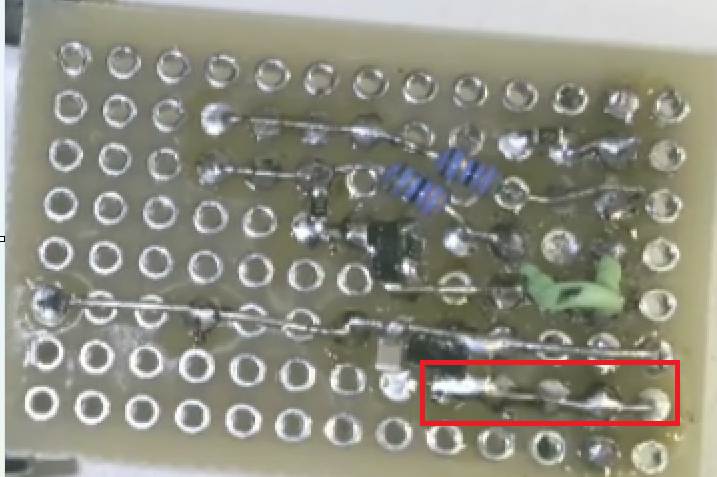

     font-family:游ゴシック'>ドレイン回路の<span lang=EN-US>1.5K</span>Ωもチップ抵抗が手元になく、連結していますが、スペースはたっぷりあるので</span></li>
 <li class=MsoNormal style='vertical-align:middle'><span style='font-size:11.0pt;
     font-family:游ゴシック'>普通の<span lang=EN-US>1/4W</span>抵抗を使った方が簡単かもしれません</span></li>
</ul>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=382 height=444 id="図 2"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image002.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/default.aspx"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>トップページ</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<div>

<table class=MsoNormalTable border=1 cellspacing=0 cellpadding=0 title=""
 summary="" style='border-collapse:collapse;border:none'>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>112725</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border:solid #A3A3A3 1.0pt;
  border-left:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>ユニバーサル基板</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border:solid #A3A3A3 1.0pt;
  border-left:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>枚</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'> 103785</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>ピンソケット　メス</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>

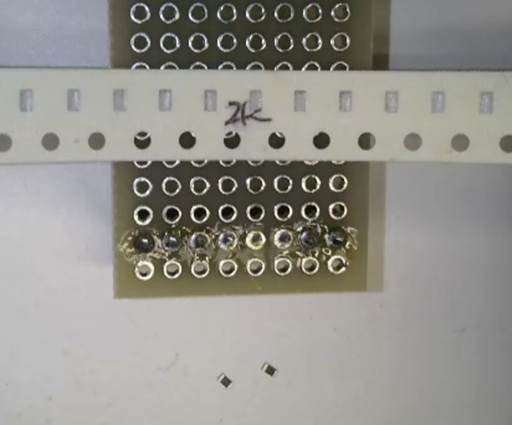

  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップ抵抗<span
  lang=EN-US> 2K</span>Ω</span></p>
  </td>
  <td width=330 valign=top style='width:247.2pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>2</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

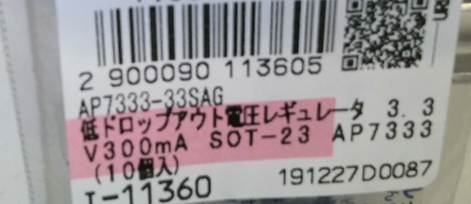

  游ゴシック'>11130</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>電圧レギュレーター<span
  lang=EN-US> 3.3V300mA</span></span></p>
  </td>
  <td width=330 valign=top style='width:247.2pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

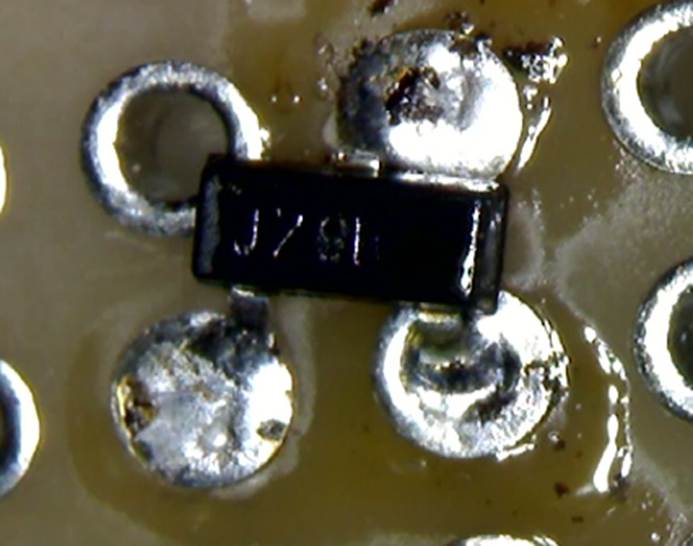

  游ゴシック'>106048</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>

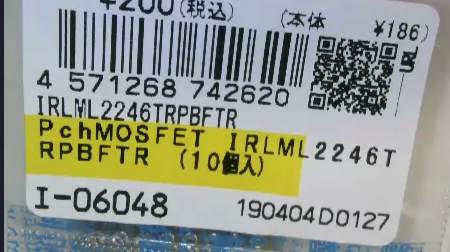

  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>PchMOSFET</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップ抵抗<span
  lang=EN-US> 22K</span>Ω</span></p>
  </td>
  <td width=330 valign=top style='width:247.2pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>108517</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>金属皮膜抵抗<span
  lang=EN-US> 1/4W33</span>Ω</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップ抵抗　<span
  lang=EN-US>1K</span>Ω</span></p>
  </td>
  <td width=342 valign=top style='width:256.7pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個　<span
  lang=EN-US>1.5K</span>Ωの普通対抗を使った方がいいでしょう</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップ抵抗　<span
  lang=EN-US>510</span>Ω</span></p>
  </td>
  <td width=330 valign=top style='width:247.2pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>113071</span></p>
  </td>
  <td width=255 valign=top style='width:191.3pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>セラミックコンデンサー<span
  lang=EN-US> 0.1</span>μ<span lang=EN-US>F25V</span></span></p>
  </td>
  <td width=326 valign=top style='width:244.35pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>106014</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップダイオード
  </span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

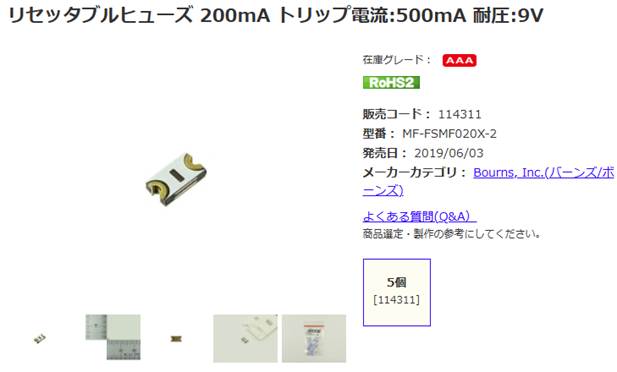

  游ゴシック'> 114311</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>リセッタブルヒューズ<span
  lang=EN-US> 200mA</span></span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>110272</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>

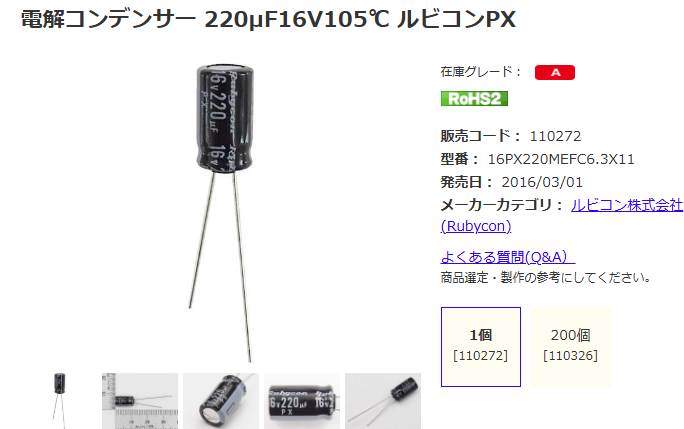

  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>電解コンデンサー<span
  lang=EN-US> 220</span>μ<span lang=EN-US>F16V</span></span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>103647</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>タクトスイッチ</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
 <tr>
  <td width=71 valign=top style='width:53.3pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>111878</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>

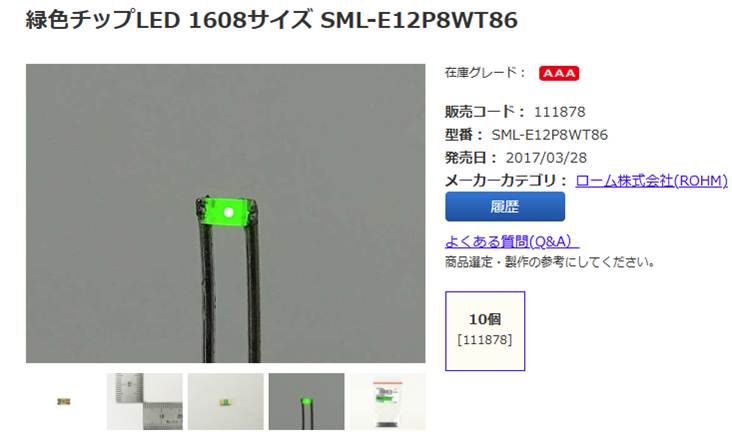

  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>緑色チップ<span
  lang=EN-US>LED 1608</span>サイズ</span></p>
  </td>
  <td width=328 valign=top style='width:245.75pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>パック</span></p>
  </td>
 </tr>
 <tr>
  <td width=69 valign=top style='width:51.85pt;border:solid #A3A3A3 1.0pt;
  border-top:none;padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>&nbsp;</span></p>
  </td>
  <td width=253 valign=top style='width:189.95pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span style='font-size:11.0pt;font-family:游ゴシック'>チップ抵抗<span
  lang=EN-US> 1K</span>Ω</span></p>
  </td>
  <td width=330 valign=top style='width:247.2pt;border-top:none;border-left:
  none;border-bottom:solid #A3A3A3 1.0pt;border-right:solid #A3A3A3 1.0pt;
  padding:4.0pt 4.0pt 4.0pt 4.0pt'>
  <p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
  游ゴシック'>1</span><span style='font-size:11.0pt;font-family:游ゴシック'>個</span></p>
  </td>
 </tr>
</table>

</div>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g112725/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>両面スルーホールガラスコンポジット・ユニバーサル基板
E</span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>タイプ: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>基板・ブレッドボード・ラグ板</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g103785/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>ピンソケット(</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>メス) 1</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>×8(8P): </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>ケーブル・コネクター</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g111360/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>低ドロップアウト電圧レギュレーター
3.3V300mA SOT-23 AP7333: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>半導体</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g106048/"><span style='font-size:
11.0pt;font-family:游ゴシック'>PchMOSFET IRLML2246TRPBF: </span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>半導体</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g108517/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>小型</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>金属皮膜抵抗
1/4W33</span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>Ω: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>受動部品</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g113071/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>太陽誘電チップ積層セラミックコンデンサー
0.1</span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>μF25V F/Y5V 1608: </span></span><span lang=EN-US style='font-size:
11.0pt;font-family:游ゴシック'><span lang=EN-US>受動部品</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g106014/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>チップダイオード 1000V1A
GS1010FL: </span></span><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><span lang=EN-US>半導体</span></span><span lang=EN-US style='font-size:
11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g114311/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>リセッタブルヒューズ 200mA </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>トリップ電流:500mA
</span></span><span lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span
lang=EN-US>耐圧:9V: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>受動部品</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g110272/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電解コンデンサー 220</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>μF16V105</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>℃</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>ルビコンPX: </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>受動部品</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g103647/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>タクトスイッチ(</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>黒色): </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>制御部品・駆動部品</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US><a
href="https://akizukidenshi.com/catalog/g/g111878/"><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>緑色チップLED 1608</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>サイズ
SML-E12P8WT86: </span></span><span lang=EN-US style='font-size:11.0pt;
font-family:游ゴシック'><span lang=EN-US>オプトエレクトロニクス</span></span><span lang=EN-US
style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US> </span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>秋月電子通商-</span></span><span
lang=EN-US style='font-size:11.0pt;font-family:游ゴシック'><span lang=EN-US>電子部品・ネット通販</span></span></a></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

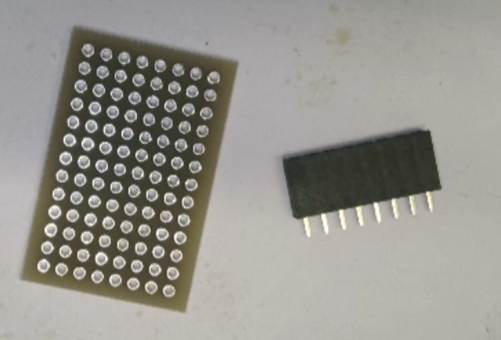

游ゴシック'><img border=0 width=501 height=340 id="図 3"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image003.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=277 height=223 id="図 4"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image004.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=173 height=214 id="図 5"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image005.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=313 height=259 id="図 6"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image006.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=512 height=425 id="図 7"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image007.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=594 height=663 id="図 8"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image008.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=520 height=395 id="図 9"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image009.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=530 height=306 id="図 10"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image010.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:

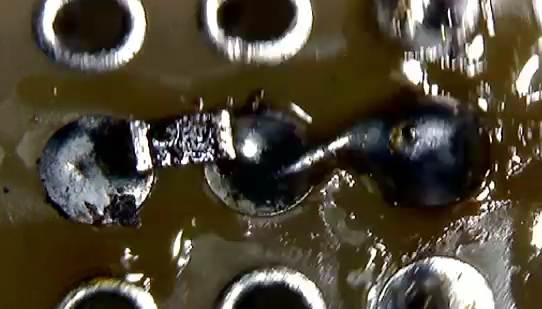

游ゴシック'><img border=0 width=542 height=309 id="図 11"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image011.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=560 height=150 id="図 12"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image012.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=471 height=204 id="図 13"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image013.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=567 height=642 id="図 14"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image014.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=710 height=468 id="図 15"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image015.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=693 height=546 id="図 16"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image016.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=450 height=252 id="図 17"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image017.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=570 height=644 id="図 18"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image018.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=431 height=344 id="図 19"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image019.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=432 height=375 id="図 20"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image020.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=355 height=252 id="図 21"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image021.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=588 height=654 id="図 22"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image022.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=381 height=357 id="図 23"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image023.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=552 height=277 id="図 24"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image024.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=576 height=657 id="図 25"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image025.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=505 height=374 id="図 26"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image026.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=480 height=378 id="図 27"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image027.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=561 height=645 id="図 28"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image028.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=612 height=495 id="図 29"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image029.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=755 height=507 id="図 30"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image030.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=708 height=462 id="図 31"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image031.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=729 height=447 id="図 32"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image032.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=570 height=645 id="図 33"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image033.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=723 height=537 id="図 34"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image034.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=566 height=654 id="図 35"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image035.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=753 height=648 id="図 36"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image036.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=572 height=648 id="図 37"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image037.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=701 height=474 id="図 38"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image038.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=533 height=636 id="図 39"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image039.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=684 height=404 id="図 40"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image040.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=759 height=458 id="図 41"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image041.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=534 height=635 id="図 42"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image042.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=717 height=477 id="図 43"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image043.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=540 height=636 id="図 44"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image044.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=519 height=566 id="図 45"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image045.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=542 height=611 id="図 46"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image046.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=615 height=434 id="図 47"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image047.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=684 height=500 id="図 48"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image048.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=539 height=642 id="図 49"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image049.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=617 height=372 id="図 50"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image050.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=769 height=474 id="図 51"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image051.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=549 height=636 id="図 52"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image052.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=713 height=420 id="図 53"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image053.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=458 height=528 id="図 54"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image054.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=536 height=638 id="図 55"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image055.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=684 height=429 id="図 56"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image056.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=723 height=576 id="図 57"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image057.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=729 height=444 id="図 58"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image058.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=411 height=358 id="図 59"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image059.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=549 height=645 id="図 60"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image060.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=328 height=237 id="図 61"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image061.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=552 height=635 id="図 62"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image062.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=438 height=303 id="図 63"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image063.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=732 height=441 id="図 64"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image064.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=732 height=626 id="図 65"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image065.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=334 height=411 id="図 66"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image066.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=528 height=441 id="図 67"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image067.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=516 height=382 id="図 68"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image068.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=241 height=292 id="図 69"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image069.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'><img border=0 width=709 height=581 id="図 70"
src="G2501_lpc11u35_usb_wrt_bord_report.files/image070.jpg"></span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

<p style='margin:0mm'><span lang=EN-US style='font-size:11.0pt;font-family:
游ゴシック'>&nbsp;</span></p>

</div>

</body>

</html>
